N140BGA-EA3 14 Inch Slim TFT LCD Panel 30 Pins EDP Laptop Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N140BGA-EA3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | N140BGA-EA3 | Panel Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 (WXGA) 112PPI | Display Area: | 309.399 × 173.952 (H×V) |
| Outline Size: | 320.4 × 205.1 × 3 (H×V×D) | Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) |
| Color Depth: | 262K 45% NTSC | Application: | Laptop |
| Highlight: | N140BGA-EA3 TFT LCD Panel,14 Inch TFT LCD Panel,eDP Laptop Display Screen |
||
Product Description

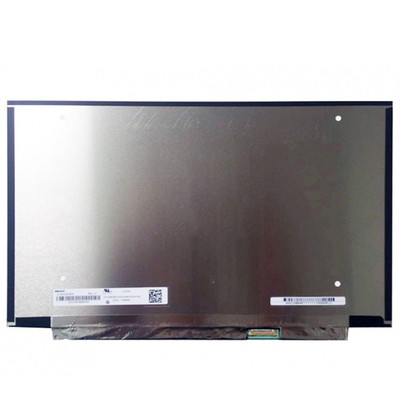

N140BGA-EA3 14 inch Slim TFT-LCD Panel 30 Pins eDP Laptop Display Screen
N140BGA-EA3 Product details :
| Innolux LCD SCREEN N140BGA-EA3 | |
| Manufacturer | Innolux |
| Model Name | N140BGA-EA3 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 112PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.399 × 173.952 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N140BGA-EA3 14 inch Slim TFT-LCD Panel 30 Pins eDP Laptop Display Screen | |
N140BGA-EA3 KIND REMINDER:
* Each LCD will be tested one by one with our device before shipping to make sure the lcd will works perfect on your device,if you don't know how to install it,we suggest you to find a professional technician to do for you.Installation guide not provide, please be sure you know how to install it before bid.
N140BGA-EA3 ABOUT US:
* We are LCD wholesaler from China,we have large manufactory source,if you have big demandon LCD products,please do not hesitate to contact us for our best price,looking forward to cooperate with you in the future!
N140BGA-EA3 Payment:
Standard payment terms: T/T, L/C.
Online trade assurance order, all is up to you.
More payment terms could be provided.(PAYPAL WESTERN UNION, or others)
N140BGA-EA3 Shipment:
After-sales Service: When order complete,an email will be sent out to confirm the value and shipment methods.Then the shipment tracking number will be shared with email as always.100% strict inspection and test before shipment. Replace in one week once original defective goods found on arrival.Enjoy 1 year free replacement warranty.
N140BGA-EA3 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time
the goods arrive at the destination).
N140BGA-EA3 FAQ:
Q: Can I pay my order of N140BGA-EA3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of N140BGA-EA3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of N140BGA-EA3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
N140BGA-EA3 Shipping and Package :
