10.4 Inch RGB 800X600 TFT LCD Display LCD Screen Display TCG104SVLQAPNN-AN20
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG104SVLQAPNN-AN20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TCG104SVLQAPNN-AN20 | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×162.2(H) Mm | Outline Size: | 240.7(W)×180.2(H)mm |
| Panel Weight: | 470g (Typ.) | Application: | Industrial |
| High Light: | 10.4 Inch TFT LCD Display,SVGA TFT LCD Display,Symmetry lcd screen display |
||
Product Description

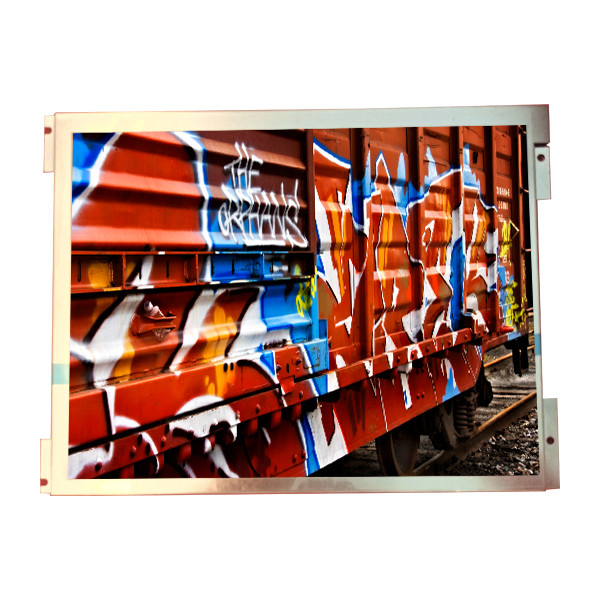

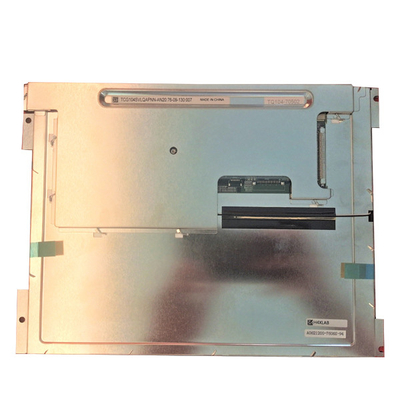

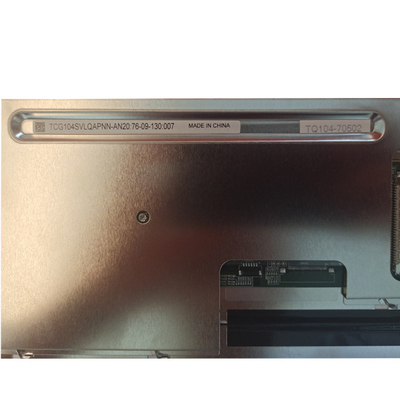

TCG104SVLQAPNN-AN20 10.4 inch 800(RGB)×600 tft lcd displays lcd screen display tft panel lcd
TCG104SVLQAPNN-AN20 Product details :
| Kyocera LCD SCREEN TCG104SVLQAPNN-AN20 | |
| Panel Brand | Kyocera |
| Panel Model | TCG104SVLQAPNN-AN20 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA, 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 215.4(W)×162.2(H) mm |
| Outline Size | 240.7(W)×180.2(H) mm |
| Surface | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 51% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 470g (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| TCG104SVLQAPNN-AN20 10.4 inch 800(RGB)×600 tft lcd displays lcd screen display tft panel lcd | |
TCG104SVLQAPNN-AN20 KIND REMINDER:
* Each LCD will be tested one by one with our device before shipping to make sure the lcd will works perfect on your device,if you don't know how to install it,we suggest you to find a professional technician to do for you.Installation guide not provide, please be sure you know how to install it before bid.
TCG104SVLQAPNN-AN20 ABOUT US:
* We are LCD wholesaler from China,we have large manufactory source,if you have big demandon LCD products,please do not hesitate to contact us for our best price,looking forward to cooperate with you in the future!
TCG104SVLQAPNN-AN20 Payment:
Standard payment terms: T/T, L/C.
Online trade assurance order, all is up to you.
More payment terms could be provided.(PAYPAL WESTERN UNION, or others)
TCG104SVLQAPNN-AN20 Shipping and Package :
TCG104SVLQAPNN-AN20 Shipment:
After-sales Service: When order complete,an email will be sent out to confirm the value and shipment methods.Then the shipment tracking number will be shared with email as always.100% strict inspection and test before shipment. Replace in one week once original defective goods found on arrival.Enjoy 1 year free replacement warranty.
TCG104SVLQAPNN-AN20 Guarantee and Refund:
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 90 days )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
TCG104SVLQAPNN-AN20 FAQ:
Q: Can You declare my order of TCG104SVLQAPNN-AN20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods TCG104SVLQAPNN-AN20 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of TCG104SVLQAPNN-AN20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TCG104SVLQAPNN-AN20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
