8.4 Inch TFT LCD Screen RGB 640X480 LCD Display Screen TCG084VGLAAANN-AN50
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG084VGLAAANN-AN50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TCG084VGLAAANN-AN50 | Panel Size: | 8.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 95PPI | Display Area: | 170.88(W)×128.16(H) Mm |
| Bezel Opening: | 174.4(W)×131.8(H) Mm | Outline Size: | 199.5(W)×147.4(H)mm |
| Panel Weight: | 320g | Application: | Industrial |
| High Light: | 8.4 Inch tft lcd screen,Antiglare tft lcd screen,500 cd/m2 lcd display screen |
||
Product Description

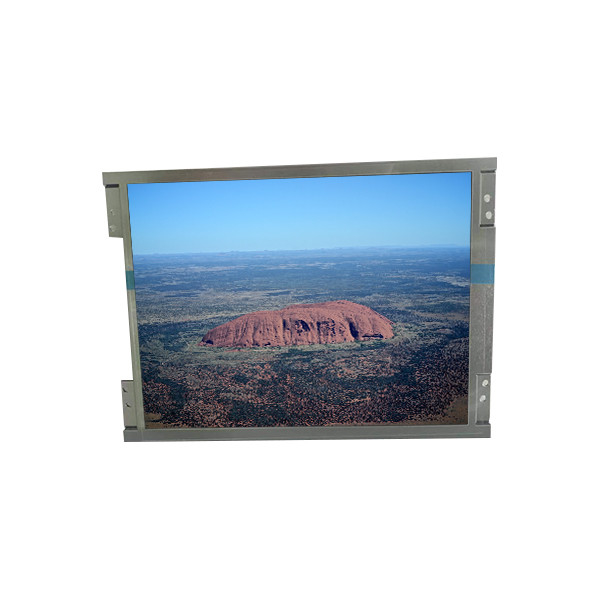

TCG084VGLAAANN-AN50 8.4 inch tft lcd screen 640(RGB)×480 lcd display screen
TCG084VGLAAANN-AN50 Product details :
| Kyocera LCD SCREEN TCG084VGLAAANN-AN50 | |
| manufacturer | Kyocera |
| Model Name | TCG084VGLAAANN-AN50 |
| screen size | 8.4 inch |
| Screen type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA, 95PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 170.88(W)×128.16(H) mm |
| physical dimension | 199.5(W)×147.4(H) mm |
| Visual size | 174.4(W)×131.8(H) mm |
| surface treatment | Antiglare |
| Brightness | 500 cd/m² (Typ.) |
| Contrast | 850:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White |
| Viewing angle | 65/65/60/65 (Typ.)(CR≥10) |
| Responding time | 10/20 (Typ.)(Tr/Td) |
| Number of color | 262K 49% NTSC |
| Backlight type | 3 strings WLED , 70K hours , Without Driver |
| Panel weight | 320g |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| 8.4 inch TFT LCD Module TCG084VGLAAANN-AN50 LCD display | |
