TCG057QVLCA-G00 LCD Module Panel RGB 320X240 WLED 5.7 Inch Screen
Product Details:
Place of Origin: | China |
Brand Name: | Kyocera |
Model Number: | TCG057QVLCA-G00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model: | TCG057QVLCA-G00 | Diagonal Size: | 5.7 Inch |
---|---|---|---|
Pixel Format: | 320(RGB)×240 [QVGA] 70PPI | Active Area: | 115.2(H)×86.4(V) Mm |
Outline Dim.: | 144(H)×104.8(V)×13.5(D) Mm | Bezel Area: | 118.4(H)×89.6(V) Mm |
Weight: | 210g (Typ.) | Designed For: | Industrial |
High Light: | TCG057QVLCA-G00 lcd module panel,WLED lcd module panel |
Product Description

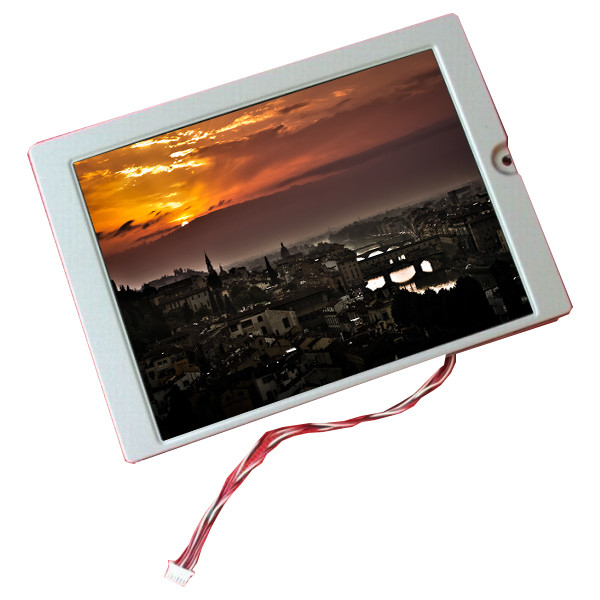

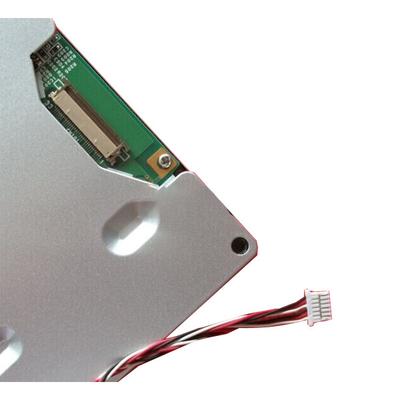

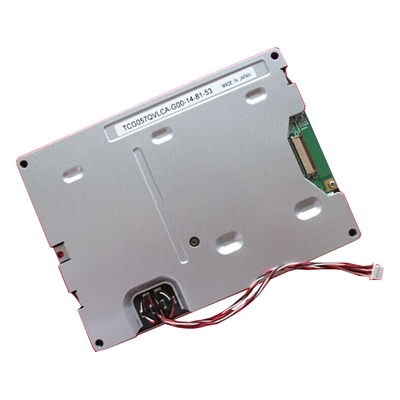

TCG057QVLCA-G00 lcd panel WLED 5.7 inch screen 320(RGB)×240 lcd module
TCG057QVLCA-G00 Product details :
Kyocera LCD SCREEN TCG057QVLCA-G00 | |
manufacturer | Kyocera |
Model Name | TCG057QVLCA-G00 |
screen size | 5.7 inch |
Screen type | a-Si TFT-LCD , LCM |
Resolution | 320(RGB)×240 [QVGA] 70PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 115.2(H)×86.4(V) mm |
physical dimension | 144(H)×104.8(V) ×13.5(D) mm |
Visual size | 118.4(H)×89.6(V) mm |
surface treatment | Glare (Haze 0%) |
Brightness | 350 cd/m² (Typ.) |
Contrast | 500:1 (Typ.) (TM) |
Optical mode | TN, Normally White, Transmissive |
Viewing angle | 80/80/80/80 (Typ.)(CR≥5) |
Responding time | 10/25 (Typ.)(Tr/Td) |
Number of color | 262K 60% NTSC |
Backlight type | WLED [3 strings] , 50K hours , W/O Driver |
Panel weight | 210g (Typ.) |
Apply to | Industrial |
Touch function | No touch |
signal system | Parallel RGB (1 ch, 6-bit) , 33 pins Connector |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
5.7 inch WLED TFT LCD display TCG057QVLCA-G00 |
1 : Price can be negotiable based on quantity; delivery terms;
2 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
3: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
4: Package: All the items will be packed very well to avoid damage.
5: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.
TCG057QVLCA-G00 A lot of stock:
We are a company mainly engaged in spot goods, mainly engaged in LCD and supporting electronic products. We have sufficient supply and a large amount of stock. So it has a price advantage.
TCG057QVLCA-G00 Shipping and Package :
TCG057QVLCA-G00 Shipment Information:
All the parts will be tested before shipment.
We can ship to you by DHL / FedEX / TNT / UPS / EMS… ,
you can choose the shipping method you prefer.
The buyer is responsible for any tax or duty charged by their country.
TCG057QVLCA-G00 Refund&Replacement:
1. Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition, specific reason for the return,
We will issue a return or replacement for your order after we received the returns.
3.The buyer is responsible for all the shipping cost incurred.
TCG057QVLCA-G00 FAQ:
Q: Can you give me a discount if I need a large quantity of TCG057QVLCA-G00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of TCG057QVLCA-G00 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of TCG057QVLCA-G00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of TCG057QVLCA-G00 ?
A: The order will be shipped within 2-3 working days after received your payment.
