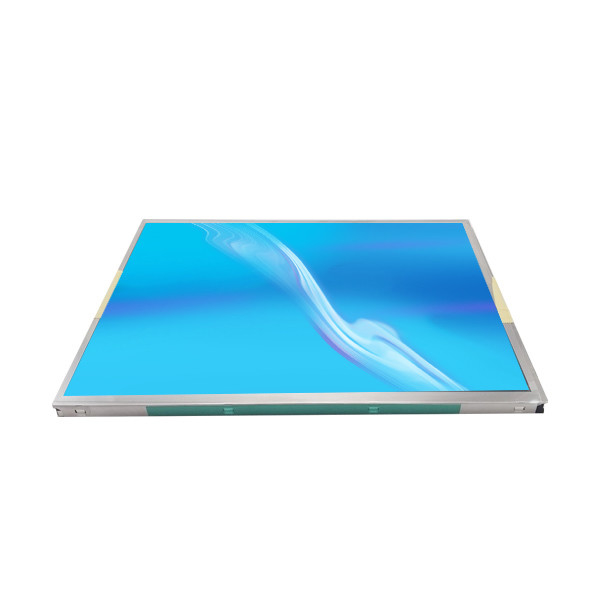

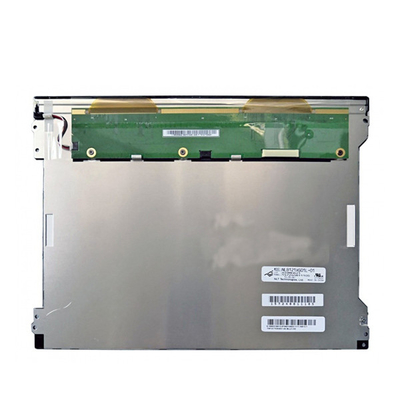

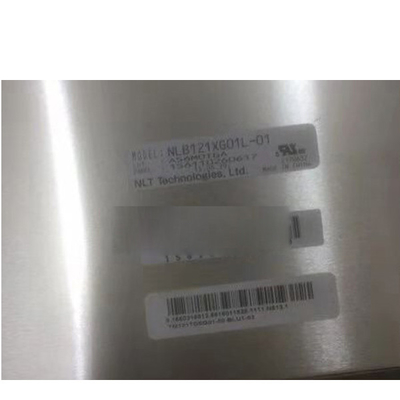

12.1 Inch Industrial LCD Screen Full Viewing Angle RGB 1024X768 NLB121XG01L-01
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NLB121XG01L-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NLB121XG01L-01 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 105PPI | Display Area: | 245.76(W)×184.32(H) Mm |
| Bezel Opening: | 250.8(W)×189.4(H) Mm | Outline Size: | 279(W)×209(H)×9(D) Mm |
| Weight: | 480/500g (Typ./Max.) | Application: | Industrial |
| High Light: | Full Viewing Angle industrial LCD screen,NLB121XG01L-01 industrial LCD screen |
||
Product Description
12.1 inch full viewing angle high score industrial LCD screen resolution 1024(RGB)×768 new original NLB121XG01L-01
NLB121XG01L-01 Product details :
| NEC LCD Screen NLB121XG01L-01 | |
| Manufacturer | NLT |
| Model Name | NLB121XG01L-01 |
| Screen Size | 12.1 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 1024(RGB)*768, XGA, 105PPI |
| Pixel layout | RGB vertical bar |
| Display area | 245.76(W)*184.32(H) mm |
| Viewable area | 250.8(W)*189.4(H) mm |
| physical dimension | 279(W)*209(H) *9(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 450 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 3/5 (Typ.)(Tr/Td) ms |
| Display color | 262K/16.7M, 55% NTSC |
| type of light source | WLED, 50K hours, with LED driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 480/500g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Working: -20 ~ 70 °C; Storage: -30 ~ 80 °C |
| 12.1 inch full viewing angle high score industrial LCD screen resolution 1024(RGB)×768 new original NLB121XG01L-01 | |
NLB121XG01L-01 Products and services:
&Our company mainly sales of LCD panel and touch screen,
& We have thousands of models and products.So we are able to meet consumer demand.
& we offer high quality, fast delivery, competitive price for our customers
& Please send your RFQ(request for quoting) to get latest price.
& Warranty of each part.
NLB121XG01L-01 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
NLB121XG01L-01 Payment:
1. We accept T/T(bank transfer), Western Union, Paypal for now.
2. Choosing Paypal need to pay extra 3% of total amount as handling charge.
3. If you have any problems of payment, please contact us freely.
NLB121XG01L-01 Shipping and Package :
NLB121XG01L-01 Logistics:
1. Worldwide shipping.
2. Orders will be delivered in 3 working days after receiving full payment.
3. Major express partners: DHL, Fedex, TNT, EMS, Aramex.
4. We are not responsible for any customs duties and additional taxes.
NLB121XG01L-01 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
NLB121XG01L-01 FAQ:
Q: Can you give me a discount if I need a large quantity of NLB121XG01L-01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NLB121XG01L-01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NLB121XG01L-01 ?
A: We accept T/T , Paypal , western union .
Q: How long will I receive my goods NLB121XG01L-01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
