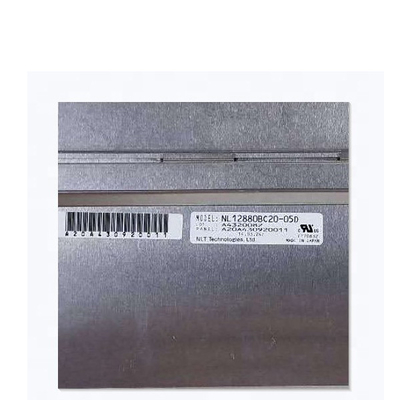

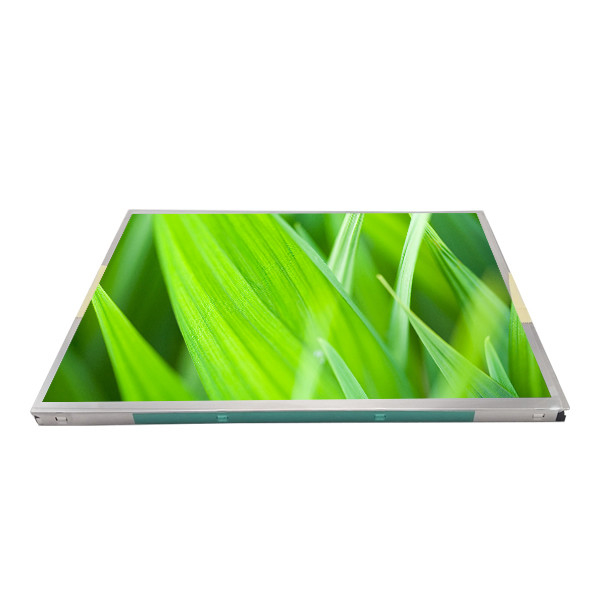

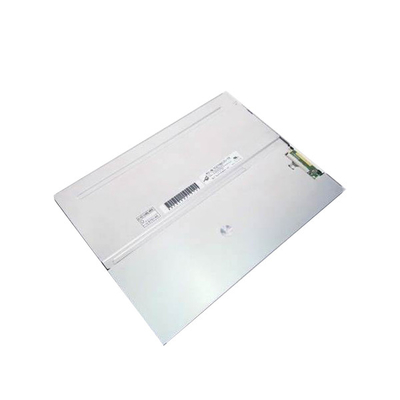

NL12880BC20-05D LCD Display Module 12.1 Inch For Industrial Application
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL12880BC20-05D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL12880BC20-05D | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×800 [WXGA] 124PPI | Active Area: | 261.12(H)×163.2(V) Mm |
| Outline Dim.: | 277.7(H)×180.6(V)×9.2(D) Mm | Bezel Area: | 264.1(H)×166.2(V) Mm |
| Weight: | 460/490g (Typ./Max.) | Designed For: | Industrial |
| High Light: | Matte LCD Display Module,NL12880BC20-05D LCD Display Module |
||
Product Description
Original 12.1 inch NL12880BC20-05D LCD Display Module for Industrial Application
NL12880BC20-05D Product details :
NL12880BC20-05D supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 277.7(W)×180.6(H)×9.2(D) mm, viewing area size of 264.1(W)×166.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 460/490g (Typ./Max.). As a UA-SFT, Normally Black, Transmissive LCM product, NL12880BC20-05D can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. NL12880BC20-05D utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| NEC LCD Screen NL12880BC20-05D | |
| Manufacturer | NEC |
| Model Name | NL12880BC20-05D |
| Screen Size | 12.1 inch |
| Panel type | a-Si TFT-LCD, LCD module |
| Number of pixels | 1280(RGB)*800, WXGA, 124PPI |
| Pixel layout | RGB vertical bar |
| Display area | 261.12(W)*163.2(H) mm |
| Viewable area | 264.1(W)*166.2(H) mm |
| physical dimension | 277.7(W)*180.6(H) *9.2(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 450 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating mode | UA-SFT, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 10/15 (Typ.)(Tr/Td) ms |
| Display color | 262K/16.7M, 40% NTSC |
| type of light source | 4 strings WLED, 70K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 460/490g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -20 ~ 70 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| Original 12.1 inch NL12880BC20-05D LCD Display Module for Industrial Application | |
NL12880BC20-05D Shipping and Package :
NL12880BC20-05D Shipping :
After your payment we will prepare and send your goods in 1-5days.
it takes 7-14 working days (2-3 weeks) to receive in most area.
DHL spend about 3 to 7days week ;
FEDex spend about 1 weeks;
EMS spend about 2 to 3 weeks;
HK china post air mail spend a bout 2 to 3 weeks;
china post air mail spend about 3 weeks;
NL12880BC20-05D Warm tip:
If you are Indian ,Russian ,Brazil or Belarus customers ,suggest you chose EMS ,or china post air mail,or HK china post air mail,it's better for helping you to clear customs.
Before your payment we will check the shipping cost with you,DHL,EMS,UPS and Fedex if can send your position ,you can choose one you need.
NL12880BC20-05D Note:
you can leave a message or email us at any time,If can help you we are willing to help you.Before give us order ,you'd better contact us,we can help you sure which product suit for you!
NL12880BC20-05D FAQ:
Q: Can You declare my order of NL12880BC20-05D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders of NL12880BC20-05D ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NL12880BC20-05D ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL12880BC20-05D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
