12.1 Inch TFT LCD Panel 30 Pin RGB 1024X768 NL10276BC24-19D NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC24-19D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL10276BC24-19D | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 105PPI | Active Area: | 245.76(H)×184.32(V) Mm |
| Outline Dim.: | 260(H)×200(V)×7.4(D) Mm | Bezel Area: | 249.0(H)×187.5(V) Mm |
| Weight: | 305/320g (Typ.Max.) | Designed For: | Industrial |
| High Light: | XGA TFT LCD Panel,NL10276BC24-19D TFT LCD Panel |
||
Product Description

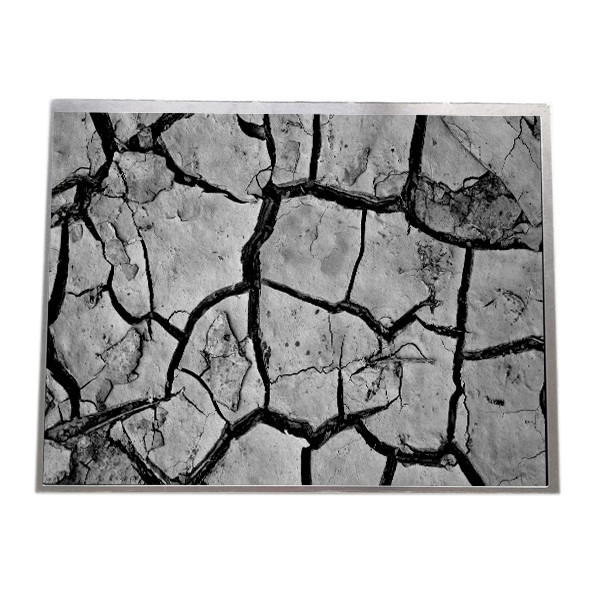

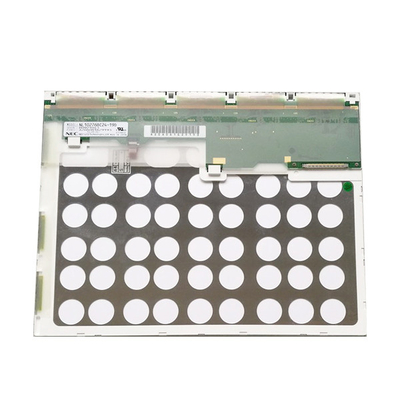

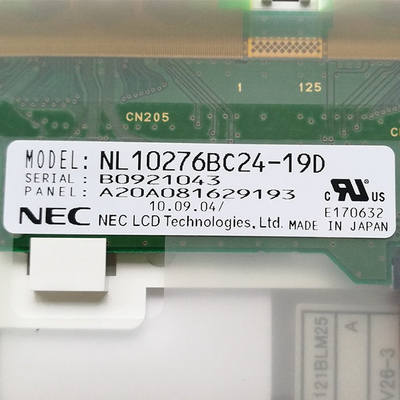

NL10276BC24-19D NEC 30 pin 12.1 inch 1024(RGB)×768 TFT LCD Panel
NL10276BC24-19D Product details :
| NEC LCD Screen NL10276BC24-19D | |
| Manufacturer | NEC |
| Model Name | NL10276BC24-19D |
| Screen Size | 12.1 inch |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)*768 XGA 105PPI |
| Pixel layout | RGB vertical bar |
| Display area | 245.76(W)*184.32(H) mm |
| Viewable area | 249.0(W)*187.5(H) mm |
| physical dimension | 260(W)*200(H) *7.4(T) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 650 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Viewing angle | 70/70/60/60 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 6/19 (Typ.)(Tr/Td) ms |
| Display color | 262K, 40% NTSC |
| type of light source | 9S5P WLED, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 305/320g (Typ.Max.) |
| Signal interface | LVDS (1 ch, 6-bit), 30 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -20 ~ 60 °C; Storage: -20 ~ 60 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL10276BC24-19D NEC 30 pin 12.1 inch 1024(RGB)×768 TFT LCD Panel | |
We offer this project is very good quality the lowest price! Products directly from the manufacturer. The number of our pursuit. What we need is a positive feedback, thank you very much for your help, our shops. Thank you.
We only provide reasonable prices for our projects of various ranks. There is a saying in the eastern region, "ten dollars of oil and water cents." Depends on what you need to choose the most appropriate one.
NL10276BC24-19D Shipping and Package :
NL10276BC24-19D Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 1-3 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 10-25 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift,the shipping address as according to your paypal address.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
NL10276BC24-19D Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
NL10276BC24-19D FAQ:
Q: Can you give me a discount if I need a large quantity of NL10276BC24-19D ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NL10276BC24-19D ?
A: Of course!sample order is welcome !
Q: Can You declare my order of NL10276BC24-19D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL10276BC24-19D ?
A: We accept T/T , Paypal , western union .
