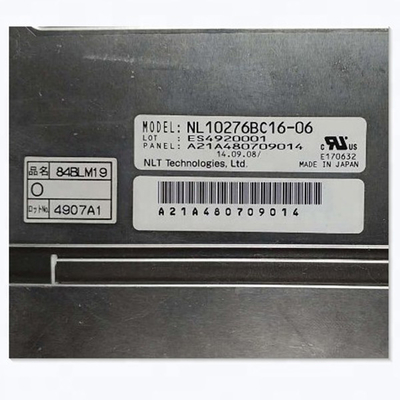

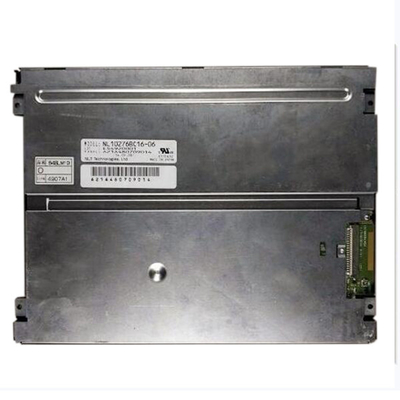

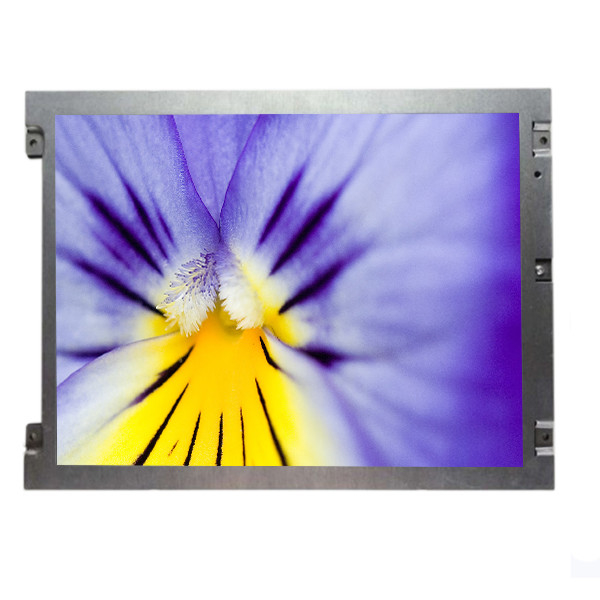

NL10276BC16-06 LCD Display Screen Panel 8.4 Inch RGB 1024X768 For Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC16-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL10276BC16-06 | Diagonal Size: | 8.4 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 152PPI | Display Area: | 170.496(H)×127.872(V) Mm |
| Bezel Opening: | 174.0(H)×131.4(V) Mm | Outline Size: | 200(H)×152(V)×8.7(D) Mm |
| Weight: | 260/280g (Typ./Max.) | Designed For: | Industrial |
| High Light: | NL10276BC16-06 LCD Display Screen Panel,8.4 inch LCD Display Screen Panel,Hard coating LCD Display Screen Panel |
||
Product Description
NL10276BC16-06 Original 8.4 inch 1024(RGB)×768 LCD Display Screen Panel for Industrial Equipment Application
NL10276BC16-06 Product details :
| NEC LCD Screen NL10276BC16-06 | |
| Manufacturer | NEC |
| Model Name | NL10276BC16-06 |
| Screen Size | 8.4 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768 [XGA] 152PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 170.496 × 127.872 mm (H×V) |
| physical dimension | 200 × 152 × 8.7 mm (H×V×D) |
| Visual size | 174.0 × 131.4 mm (H×V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 600 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | UA-SFT, normally black display, transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| responding speed | 13/12 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 72% NTSC |
| Backlight type | 4 strings WLED, 100K hours, no driver |
| Screen weight | 260/280g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL10276BC16-06 Original 8.4 inch 1024(RGB)×768 LCD Display Screen Panel for Industrial Equipment Application | |
NL10276BC16-06 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
NL10276BC16-06 Ransaction:
• if the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
• 100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
• After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
• at the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
NL10276BC16-06 Shipping and Package :
NL10276BC16-06 Shipping
• the default delivery is (Shipping Line delivery).
• if you need other delivery methods, please contact us, we can provide the following delivery methods :DHL, EMS, UPS, FEDEX.
NL10276BC16-06 About the transportation:
We pay the freight according to you to use the fastest delivery service, in 7 to 15 days to reach most of Europe, North America and Asia. In other countries/regions for 30 to 45 days. Provide express service (DHL/TNT/ARAMEX/UPS/FEDEX)
NL10276BC16-06 Important:
If you have not received the parcel within 30 days, please contact us. If unclaimed within 30 days, China post parcel will be refunded.
We are looking forward to cooperation with rational and friendly customer. If you receive the item if you have any question, please contact us immediately. Enclosed is the contact information of card attached items.
NL10276BC16-06 FAQ:
Q: Can You declare my order of NL10276BC16-06 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL10276BC16-06 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of NL10276BC16-06 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of NL10276BC16-06 ?
A: Of course!If you make a large order, we will give you a discount.
