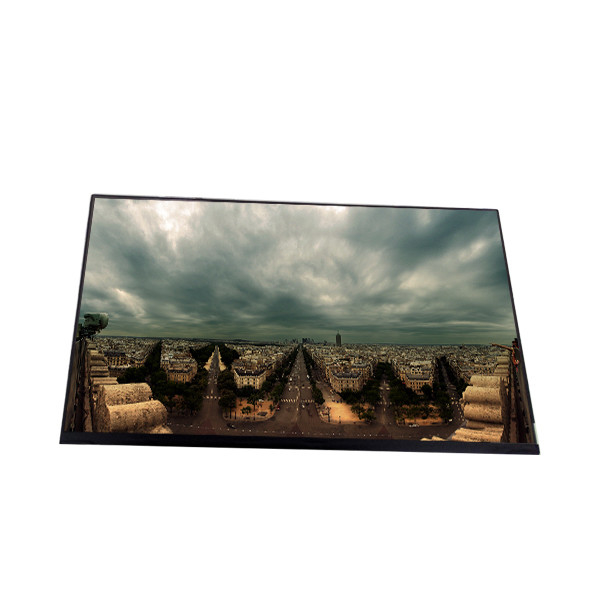

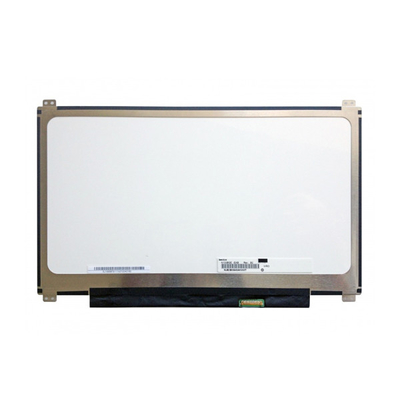

N133BGE-EAB HD TN Matte LCD Laptop Monitor 13.3 Inch Slim EDP 30 Pins Up Down Brackets
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N133BGE-EAB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | N133BGE-EAB | Panel Size: | 13.3 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 (WXGA) 118PPI | Display Area: | 293.42 × 164.97 (H×V) |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Color Depth: | 262K 50% NTSC |
| Contrast Ratio: | 500 : 1 (Typ.) (TM) | Application: | Laptop |
| High Light: | N133BGE-EAB lcd laptop monitor,TN Matte lcd laptop monitor,Slim EDP lcd laptop monitor |
||
Product Description
N133BGE-EAB HD TN matte 13.3 inch slim edp 30 pins up down brackets lcd laptop monitor
N133BGE-EAB Product details :
| Innolux LCD SCREEN N133BGE-EAB | |
| Manufacturer | Innolux |
| Model Name | N133BGE-EAB |
| Screen Size | 13.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 118PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.42 × 164.97 (H×V) |
| Outline(mm) | 306.3 × 195.2 × 3 (H×V×D) |
| Bezel Area(mm) | 296.42 × 167.97 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Response | 8/8 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | 9S3P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lanes) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N133BGE-EAB HD TN matte 13.3 inch slim edp 30 pins up down brackets lcd laptop monitor | |
N133BGE-EAB Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
N133BGE-EAB Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
N133BGE-EAB SHIPPING & HANDING:
•We need 1-3 days to process the item and prepare to ship it
•The shipping fee has included the local handing and packaging cost.
•Please note: we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
•Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
•We can not mark item as "gift", since USA and international government regulations prohibit such behavior, thank you for your understanding.
• If you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address
N133BGE-EAB Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
N133BGE-EAB FAQ:
Q: How do you ship my goods N133BGE-EAB ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of Innolux N133BGE-EAB ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel glass Innolux N133BGE-EAB at a very low value ?
A: Yes , we can . pls inform us before shipping .
N133BGE-EAB Shipping and Package :
