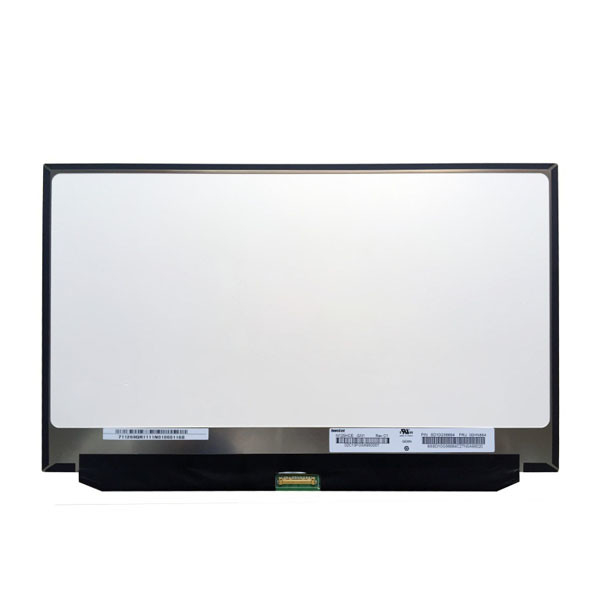

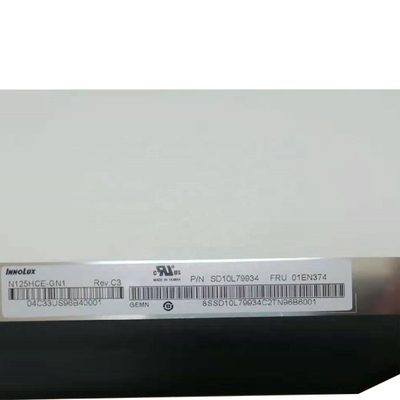

N125HCE-GN1 12.5 Inch LCD Screen Panel 1920X1080 FHD 176PPI 300cd/M2 LVDS Input
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N125HCE-GN1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | N125HCE-GN1 | Panel Size: | 12.5 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 176PPI | Display Area: | 276.48 × 155.52 (H×V) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Color Depth: | 16.7M 50% NTSC |
| Contrast Ratio: | 700 : 1 (Typ.) (TM) | Application: | Laptop |
| Highlight: | N125HCE-GN1 LCD screen panel,176PPI LCD screen panel,LVDS input LCD screen panel |
||
Product Description
N125HCE-GN1 12.5 inch support 1920*1080 FHD 176PPI 300cd/m lvds input LCD screen
N125HCE-GN1 Product details :
| Innolux LCD SCREEN N125HCE-GN1 | |
| Manufacturer | Innolux |
| Model Name | N125HCE-GN1 |
| Screen Size | 12.5 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 176PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 276.48 × 155.52 (H×V) |
| Outline(mm) | 282.68 × 179.31 × 2.5 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| N125HCE-GN1 12.5 inch LCD panel support 1920*1080 FHD 176PPI 300cd/m lvds input LCD screen | |
N125HCE-GN1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
N125HCE-GN1 Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
N125HCE-GN1 SHIPPING & HANDING:
•We need 1-3 days to process the item and prepare to ship it
•The shipping fee has included the local handing and packaging cost.
•Please note: we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
•Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
•We can not mark item as "gift", since USA and international government regulations prohibit such behavior, thank you for your understanding.
• If you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address
N125HCE-GN1 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
