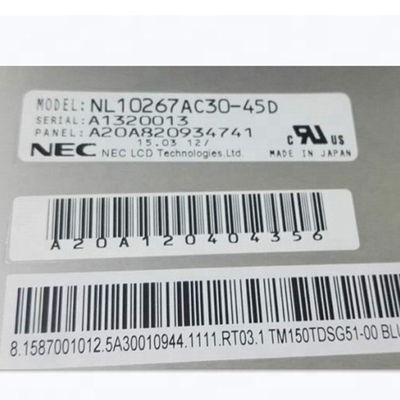

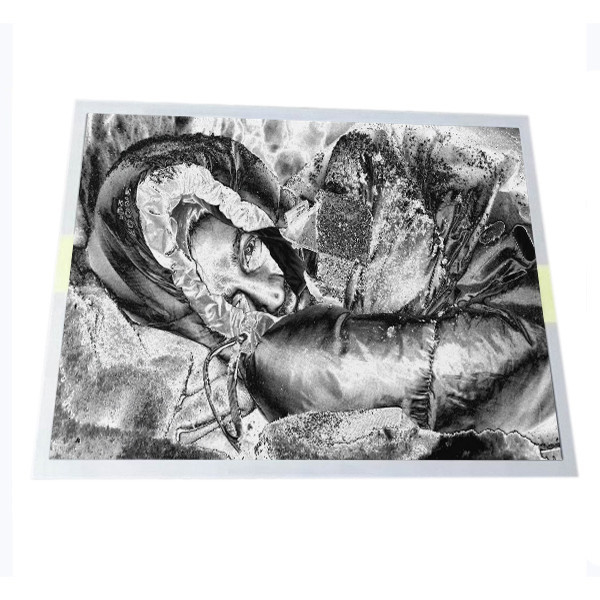

CNC Machine LCD Screen Panel 15.0 Inch RGB 1024X768 NL10276AC30-45D
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276AC30-45D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL10276AC30-45D | Panel Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline Size: | 326.5(W)×253.5(H)×12.1(D) Mm |
| Panel Weight: | 1.05/1.10Kgs (Typ./Max.) | Application: | Industrial |
| High Light: | CNC machine LCD screen Panel,LCD screen Panel NL10276AC30-45D |
||
Product Description
NL10276AC30-45D CNC machine LCD screen 15.0 inch 1024(RGB)×768 LCD screen in stock
NL10276AC30-45D Product details :
| NEC LCD Screen NL10276AC30-45D | |
| Manufacturer | NLT |
| Model Name | NL10276AC30-45D |
| Screen Size | 15.0 inch |
| Types of | Types of:a-Si TFT-LCD, LCD module |
| Resolution | 1024(RGB)*768 XGA 85PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 304.128(H)*228.096(V) mm |
| physical dimension | 326.5(H)*253.5(V) *12.1(T) mm |
| Open area | 307.4(H)*231.3(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 3/5 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 60% NTSC |
| type of light source | WLED, 100K hours, with LED driver |
| weight | 1.05/1.10Kgs (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C |
| NL10276AC30-45D CNC machine LCD screen 15.0 inch 1024(RGB)×768 LCD screen in stock | |
NL10276AC30-45D Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
NL10276AC30-45D Shipping and Package :
NL10276AC30-45D SHIPPING & HANDING:
•We need 1-3 days to process the item and prepare to ship it
•The shipping fee has included the local handing and packaging cost.
•Please note: we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
•Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
•We can not mark item as "gift", since USA and international government regulations prohibit such behavior, thank you for your understanding.
• If you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address
NL10276AC30-45D Return And Contact Us:
1. We will gladly accept return if any defective,damaged or misrepresented items within 14 days. (after the date received)
2. Replacement or refund will be arranged for all defective products returned, the buyer pay return cost shipping fee.
3.All the defective products must contact us before are return.
4.if you have any questions,Please give me E-mail or online contact, I would be happy to help you!
NL10276AC30-45D FAQ:
Q: Can You declare my order of NL10276AC30-45D to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL10276AC30-45D ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of NL10276AC30-45D ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of NL10276AC30-45D ?
A: Of course!If you make a large order, we will give you a discount.
