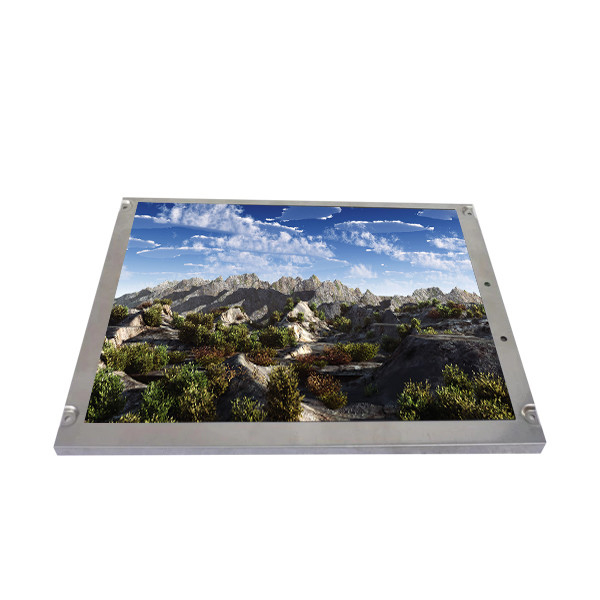

RGB 800x600 SVGA TFT LCD Display Screen 12.1 Inch NL8060BC31-20 NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC31-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | NL8060BC31-20 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 82PPI | Active Area: | 246(H)×184.5(V) Mm |
| Outline Dim.: | 280(H)×210(V)×13.7(D) Mm | Bezel Area: | 249.0(H)×187.5(V) Mm |
| Weight: | 760/800g (Typ./Max.) | Designed For: | Industrial |
| High Light: | SVGA TFT LCD Display Screen,LCD Display Screen NL8060BC31-20 |
||
Product Description
NL8060BC31-20 New Original 12.1 inch 800(RGB)×600 SVGA TFT LCD Display Screen for NEC
NL8060BC31-20 Product details :
| NEC LCD Screen NL8060BC31-20 | |
| Manufacturer | NEC |
| Model Name | NL8060BC31-20 |
| Screen Size | 12.1 inch |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)*600, SVGA, 82PPI |
| Pixel layout | RGB vertical bar |
| Display area | 246(W)*184.5(H) mm |
| Viewable area | 249.0(W)*187.5(H) mm |
| physical dimension | 280(W)*210(H) *13.7(T) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Panel brightness | 250 cd/m² (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | A-SFT, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 40/40 (Typ.)(Tr/Td) ms |
| Display color | 262K, 38% NTSC |
| type of light source | 2 pcs CCFL, 50K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 760/800g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 41 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.) |
| working environment | Work: 0 ~ 55 °C; Storage: -20 ~ 60 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL8060BC31-20 New Original 12.1 inch 800(RGB)×600 SVGA TFT LCD Display Screen for NEC | |
Buyer must read!!!
1. We do every trade with honesty. All the products we provide are in high quality with low price.
2. All the prices marked in our shop are wholesale prices and don't include tax or transportation expenses. Prices of samples or small amount of products are in high volatility sometimes. Different suffixes, packages or brands of IC are in different prices. Contact us if you are in doubt.
3. If you have a large amount of orders,Please contact us to negotiate the price
4.After receipt of the goods,If it is our mistake,We will correct our mistakes,Please contact us before submit disputes.
NL8060BC31-20 Shipping and Package :
NL8060BC31-20 Shipping:
All items will be shipped within 72 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
NL8060BC31-20 Return And Contact Us:
1. We will gladly accept return if any defective,damaged or misrepresented items within 14 days. (after the date received)
2. Replacement or refund will be arranged for all defective products returned, the buyer pay return cost shipping fee.
3.All the defective products must contact us before are return.
4.if you have any questions,Please give me E-mail or online contact, I would be happy to help you!
NL8060BC31-20 FAQ:
Q: How long is the warranty of NL8060BC31-20 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of NL8060BC31-20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL8060BC31-20 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods NL8060BC31-20 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
