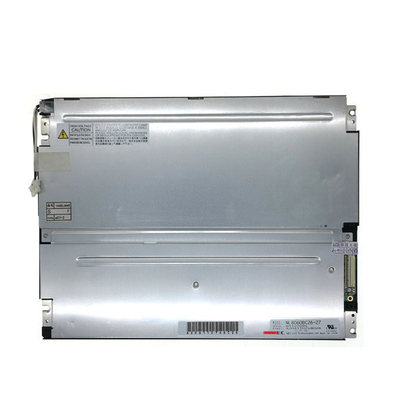

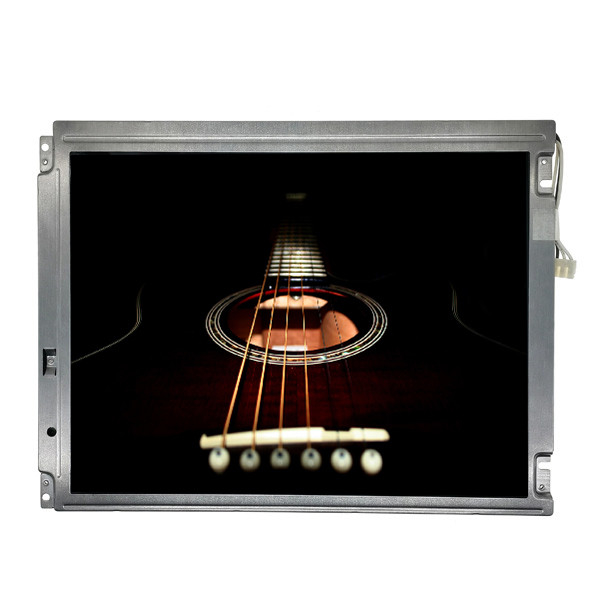

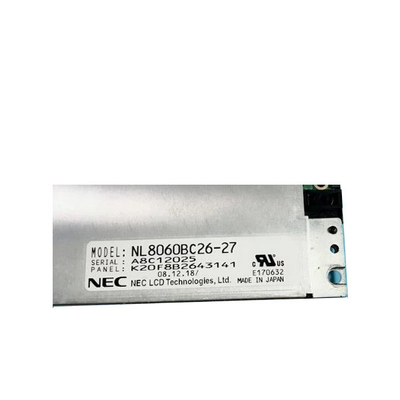

NL8060BC26-27 LCD Display Screen Panel 10.4 Inch RGB 800x600 No Touch
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC26-27 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | NL8060BC26-27 | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H)×11(D) Mm |
| Panel Weight: | 475/500g (Typ./Max.) | Application: | Industrial |
| High Light: | NL8060BC26-27 lcd display screen panel,SA SFT lcd display screen panel |
||
Product Description
NL8060BC26-27 10.4 inch 800(RGB)×600 lcd display screen panel Replacement maintenance lcd touch screen
NL8060BC26-27 Product details :
| NEC LCD Screen NL8060BC26-27 | |
| Manufacturer | NEC |
| Model Name | NL8060BC26-27 |
| Screen Size | 10.4 inch |
| Screen type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)*600 SVGA 96PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)*158.4(V) mm |
| physical dimension | 243(H)*185.1(V) *11(T) mm |
| Open area | 215.4(H)*161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (transmission) |
| Recommended perspective | Full view |
| Response time | 25/25 (Typ.)(Tr/Td) ms |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display mode | SA-SFT, normally black display, transmissive |
| Support color | 262K, 40% NTSC |
| type of light source | CCFL [2 pcs], 50K hours, no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 41 pins CMOS (1 ch, 6-bit), connector |
| Voltage supply | 3.3/5.0V (Typ.)(VCC) |
| Application Environment | Working temperature: -10 ~ 70 °C; Storage temperature: -20 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL8060BC26-27 10.4 inch 800(RGB)×600 lcd display screen panel Replacement maintenance lcd touch screen | |
Buyer must read!!!
Pls note:
1:Description before buying, please carefully read the title, please make sure the board models and machine models, if not sure, right to buy the product does not match the work, this is the responsibility as a buyer, we are not responsible for, we can accept the return of goods, but we will not bear the transportation cost, if you have not understand problem, you can always send email to us, we will reply to your mail, thank you!
2.These products are used, the circuit board components no any broken,we will test it before we sent ,
3. All product have been tested before shipping. If the product is faulty during shipping, please inform us immediately after your received it.
4: Don't open a dispute because the product is old. We have a detailed description. If you can't accept it, please don't make the order, and avoid causing unnecessary disputes. Thank you!
5:Part of the product is new and original, in the case of inventories have new stock, we will send all the new products, if in the case of new stock sold out, we will send the old products, but all products are strictly tested before sending, so don't worry!hope you can understand!
6:All products have a three-month guarantee period if have any quality problems, you can contact to us ,we can change goods and maintenance, If you are not satisfied, We will try our best to satisfy you without any loss. donot worry
NL8060BC26-27 Shipping and Package :
NL8060BC26-27 Transport issues:
(1)We will deliver the goods within 1-3 working day after the ordel is generated
(2)You can query the logistics according to the waybill number after the goods are delivered.
(3)We will test three times before delivery to ensure the quality.
(4)We will pack the goods in three layers to ensure transportation safety.
(5)Please check and make sure the address and contact information are correct.
NL8060BC26-27 FAQ:
Q: Do you accept sample orders of NL8060BC26-27 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods NL8060BC26-27 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of NL8060BC26-27 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL8060BC26-27 ?
A: Of course!If you make a large order, we will give you a discount.
