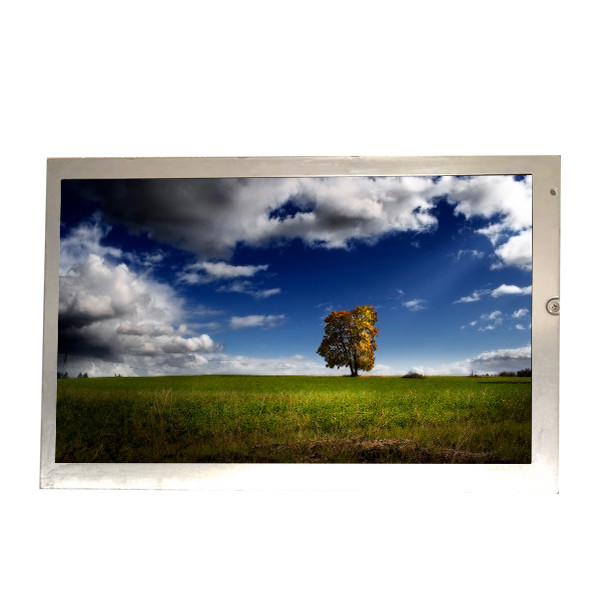

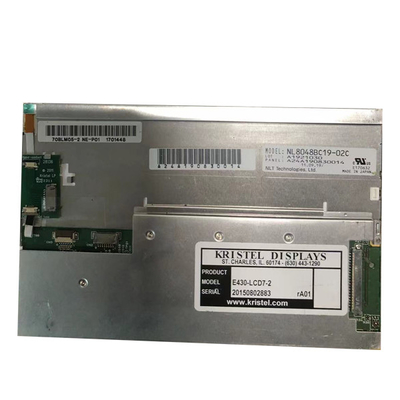

NL8048BC19-02C 7.0 Inch TFT LCD Display RGB 800X480 For Industrial Equipment
Product Details:
Place of Origin: | China |
Brand Name: | NEC |
Model Number: | NL8048BC19-02C |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model: | NL8048BC19-02C | Diagonal Size: | 7.0 Inch |
---|---|---|---|
Pixel Format: | 800(RGB)×480 [WVGA] 133PPI | Active Area: | 152.4(H)×91.44(V) Mm |
Outline Dim.: | 170(H)×111(V)×9(D) Mm | Bezel Area: | 154.4(H)×93.5(V) Mm |
Weight: | 170/180g (Typ./Max.) | Designed For: | Industrial |
High Light: | NL8048BC19-02C TFT LCD Display,anti reflection TFT LCD Display |
Product Description
NL8048BC19-02C Original 7.0 inch LCD Display 800(RGB)×480 for Industrial Equipment for NEC
NL8048BC19-02C Product details :
NEC LCD Screen NL8048BC19-02C | |
Manufacturer | NEC |
Model Name | NL8048BC19-02C |
Screen Size | 7.0 inch |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 800(RGB)×480 [WVGA] 133PPI |
Pixel configuration | RGB vertical bar |
Display size | 152.4 × 91.44 mm (H×V) |
physical dimension | 170 × 111 × 9 mm (H×V×D) |
Visual size | 154.4 × 93.5 mm (H×V) |
Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
Brightness (cd/m²) | 550 (Typ.) |
Contrast | 800: 1 (Typ.) [Transmission] |
Best angle | 6 o'clock |
Optical mode | TN, normally white display, transmissive |
Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
responding speed | 3/15 (Typ.)(Tr/Td) ms |
Number of colors | 262K/16.7M, 60% NTSC |
Backlight type | 3 strings WLED, 50K hours, no driver |
Screen weight | 170/180g (Typ./Max.) |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
NL8048BC19-02C Original 7.0 inch LCD Display 800(RGB)×480 for Industrial Equipment for NEC |
NL8048BC19-02C Helpful Information:
We are professional in touch screen digitizer of tablet ,GPS displayer ,LCD display & smartphone parts .We mainly do wholesale business ,so if you need more other goods, please contact us for wholesale price .Since some items don't display yet on time,if you need any items ,just send message or contact us!!
NL8048BC19-02C Shipping and Package :
NL8048BC19-02C Packing:
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid geting broken in the transport .
NL8048BC19-02C Shippment:
1.For remote areas, we do not bear the remote costs and will inform before sending the package.
(Customs clearance handle fee need deal with for yourself)
2.When you choose a free postage logistics, sometimes you need to change the logistics due to theweight and the country's customs clearance risk,we will arrange for personnel to contact you.
NL8048BC19-02C Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
NL8048BC19-02C FAQ:
Q: Can You declare my order of NL8048BC19-02C to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL8048BC19-02C ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NL8048BC19-02C via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
