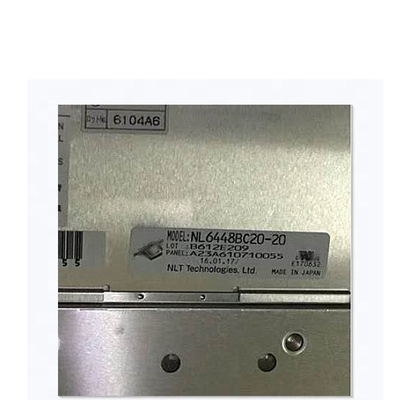

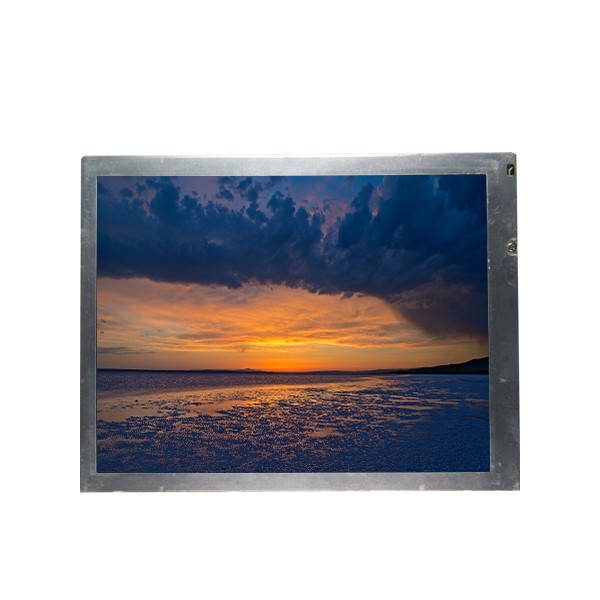

RGB 640X480 WLED TFT LCD Display Module NL6448BC20-20 6.5 Inch For Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC20-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NL6448BC20-20 | Panel Size: | 6.5" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA, 122PPI | Display Area: | 132.48(W)×99.36(H) Mm |
| Bezel Opening: | 135.9(W)×102.8(H) Mm | Outline Size: | 153(W)×118(H)×11(D) Mm |
| Weight: | 205/215g (Typ./Max.) | Application: | Industrial |
| High Light: | WLED TFT LCD Display Module,LCD Display Module NL6448BC20-20 |
||
Product Description
NL6448BC20-20 6.5 inch 640(RGB)×480 WLED TFT LCD Display Module for industry
NL6448BC20-20 Product details :
| NEC LCD Screen NL6448BC20-20 | |
| Manufacturer | NEC |
| Model Name | NL6448BC20-20 |
| Screen Size | 6.5 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 640(RGB)×480 VGA 122PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 132.48(W)×99.36(H) mm |
| Viewable area | 135.9(W)×102.8(H) mm |
| physical dimension | 153(width)×118(height) ×11(thickness) mm |
| Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
| Panel brightness | 650 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 6/19 (Typ.)(Tr/Td) ms |
| Display color | 262K, 40% NTSC |
| type of light source | 2 pcs CCFL, 50K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 205/215g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.)(VCC) |
| working environment | Work: -10 ~ 70 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC20-20 6.5 inch 640(RGB)×480 WLED TFT LCD Display Module for industry | |
NL6448BC20-20 Features:
* Grade A, Highest quality LCD screen replacement parts.
* It is used to repair faulty screen, display problems, dead pixels, cracked LCD screens, wrong color etc.
* Each lcd display is tested before shipping and is 100% working.
NL6448BC20-20 Payment:
1.Generally, we accept the following payment methods: credit card;moneybookers;T/T;western union.
NL6448BC20-20 Shipping and Package :
NL6448BC20-20 Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
NL6448BC20-20 Warranty:
* 60 days Non-Human damage issues, return for Free Replacement Guarantee.
* Our company is not responsible for the demage caused by the unprofessional assembly.
NL6448BC20-20 Return& Refund:
1.Please check the tracking in formation on tracking website.
2.Please contact us by meesage, e-mail, or trade manager.
3.Check the package and ltem, carefully.
4.Please Note: May made defects are not guaranteed,such damageafter using,water damage and so on.
NL6448BC20-20 FAQ:
Q: Can you give me a discount if I need a large quantity of NL6448BC20-20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL6448BC20-20 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of NL6448BC20-20 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of NL6448BC20-20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
