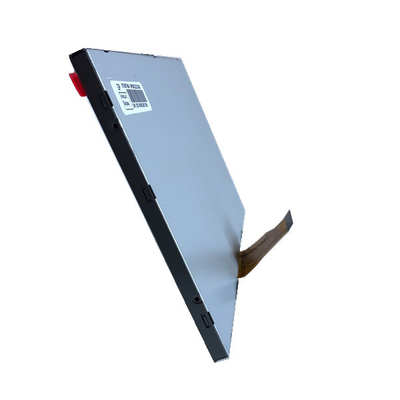

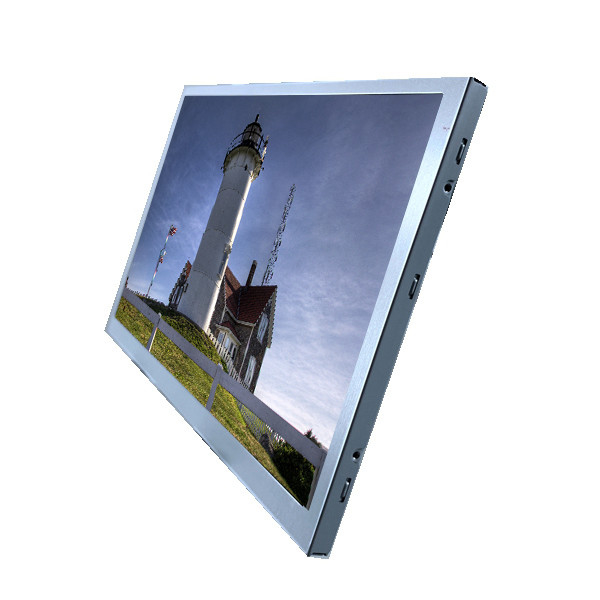

TV080WXM-NL0 8.0 Inch 1280X800 TFT LCD Display Panel Automotive TFT LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N080ICE-GB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | N080ICE-GB1 | Diagonal Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×1280 (WXGA) 188PPI | Active Area: | 107.64 × 172.224 (H×V) |
| Outline Dim.: | 120.65 × 187.64 × 5.1 (H×V×D) | Luminance: | 350 (Typ.)(cd/m²) |
| Color Depth: | 16.7M 60% NTSC | Designed For: | Pad & Tablet |
| High Light: | TV080WXM-NL0 LCD Display Panel,automotive TFT LCD Display Panel,8.0 inch TFT LCD screen module |
||
Product Description
TV080WXM-NL0 8.0 inch 1280*800 tft lcd display panel tft lcd screen module automotive display
N080ICE-GB1 Product details :
| Innolux LCD SCREEN N080ICE-GB1 | |
| Manufacturer | Innolux |
| Model Name | N080ICE-GB1 |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×1280 (WXGA) 188PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 107.64 × 172.224 (H×V) |
| Outline(mm) | 120.65 × 187.64 × 5.1 (H×V×D) |
| Treatment | Hard coating (3H), Antireflection |
| Luminance | 350 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 60% NTSC |
| Backlight | WLED , 15K hours , No Driver |
| Mass | 99.0g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , Connector 31 pins |
| Voltage Supply | 1.8/3.6V (Typ.)(VDD/VCI) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| TV080WXM-NL0 8.0 inch 1280*800 tft lcd display panel tft lcd screen module automotive display | |
Welcome to YONGS
- We have the supply of technology, can provide you with technical advide.Please send your RFQ(request for quoting) to get latest price.
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition. If you need more than 10 pcs, please contact us for a good discount.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.We have the supply of technology, can provide you with technical adviPlease send your RFQ(request for quoting) to get latest price.
N080ICE-GB1 Shipment:
1.We will sent the items within 2-5days (working days, Not holidayseasons)after the payment being confirmed by the platform.
2.The shipment by China Post Registered Air Mail for less than 2kggoods in 15-25 working days, If you need the item urgently, pleasecontact us for express shipping.
We will calculate the express shipping cost for you.
3. When you receive the items you ordered, in 24 hours, please checkit carefully.Please contact us directly if you have any problems.
4.If you have not got it within the shipping time,please contact uswithout hesitation. We will check it for you with the post office andcustoms.
N080ICE-GB1 About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
N080ICE-GB1 Guarantee:
1. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
You agree to all of the above-listed policies upon ordering !
N080ICE-GB1 Warm reminder:
The Duty or custom fees is depend on BUYER country, Not Seller!
When you place an order , Please provide a valid telephone or mobile number, Because we found that when the parcel arrive customer customs , the DHL/FEDEX/EMS feedback us that they can't get through buyer's tel/mobile .
When the parcel arrive the buyer customs , there is only several days to handle Customs clearance.
If happen that the buyer can not handle the Customs clearance and pay the customs fee in time , Our seller will not refund you .
To avoid happen , please offer valid Tel/Mobile Number , and also the e-mail , it is convenient for us to contact you by e-mail when the parcel arrive your local customs .
N080ICE-GB1 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of N080ICE-GB1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of N080ICE-GB1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods N080ICE-GB1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
N080ICE-GB1 Shipping and Package :
