7.0 Inch RGB 800X480 Industrial TFT LCD Screen TM070RDH13-40 TIANMA
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070RDH13-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM070RDH13-40 | Screen Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480 (WVGA) 134PPI | Active Area(mm): | 154.08 × 85.92 (H×V) |
| Outline(mm): | 164.9 × 100 × 6 (H×V×D) | Bezel Area(mm): | 157.08 × 89.39 (H×V) |
| Mass: | 160g | Used For: | Industrial / Digital Photo Frame / Portable DVD Player |
| Highlight: | Antiglare Industrial tft lcd screen,TM070RDH13-40 Industrial tft lcd screen |
||
Product Description

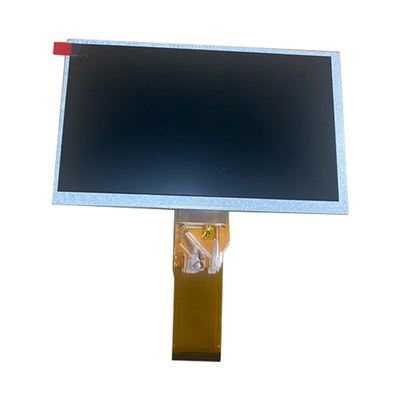

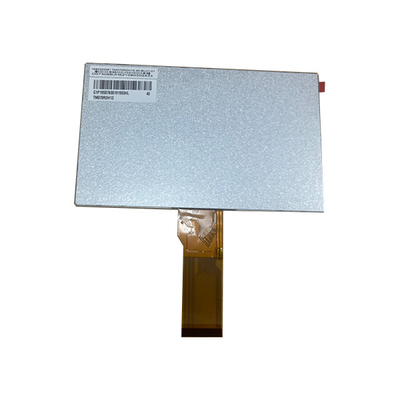

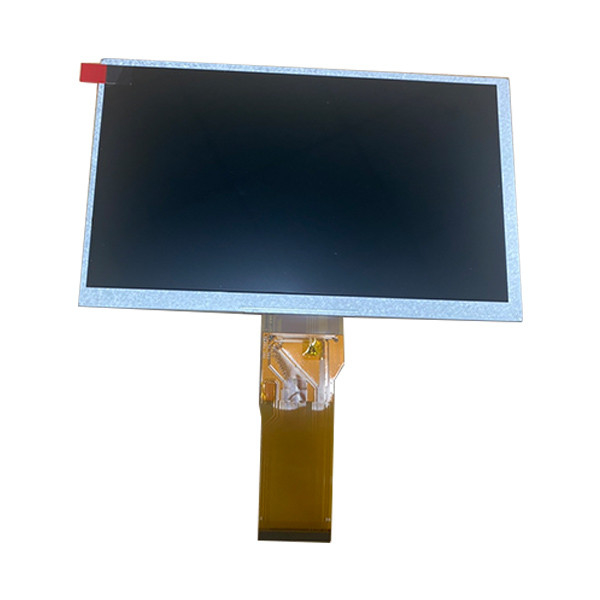

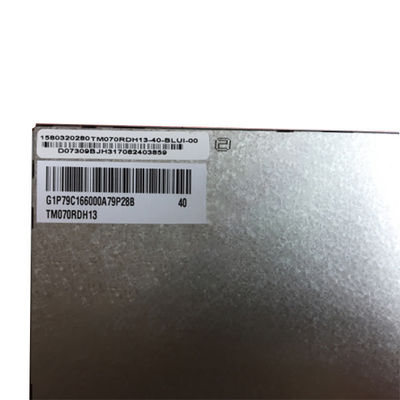

TM070RDH13-40 7.0 inch 800(RGB)×480 Industrial tft lcd screen for TIANMA
TM070RDH13-40 Product details :
| TIANMA LCD SCREEN TM070RDH13-40 | |
| manufacturer | TIANMA |
| Model Name | TM070RDH13-40 |
| screen size | 7.0 inches |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480, WVGA, 134PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 154.08(W)×85.92(H) mm |
| physical dimension | 164.9(W)×100(H) ×6(D) mm |
| Visual size | 157.08(W)×89.39(H) mm |
| surface treatment | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 80/80/60/80 (Typ.)(CR≥10) |
| Responding time | 20 (Typ.)(Tr+Td) |
| Number of color | 262K/16.7M 50% NTSC |
| Backlight type | 3S6P WLED , 20K hours , Without Driver |
| Panel weight | 160g |
| Apply to | Industrial / Digital Photo Frame / Portable DVD Player |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Supply voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Maximum rating | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| TM070RDH13-40 7.0 inch 800(RGB)×480 Industrial tft lcd screen for TIANMA | |
In-laws buyers, we specialized in selling all kinds of electronic products, more products, some products haven't upload, if has the need to model can also contact us directly, we will help you find what you need accessories, please leave a message to us, tell us what you need to display models, so that we can help you more accurate and faster to arrange shipment. Thank you for your support and trust
TM070RDH13-40 Products and services:
&Our company mainly sales of LCD panel and touch screen,
& We have thousands of models and products.So we are able to meet consumer demand.
& we offer high quality, fast delivery, competitive price for our customers
& Please send your RFQ(request for quoting) to get latest price.
& Warranty of each part.
& Terms of Payment:Escrow,Western Union,TT ,Etc.
TM070RDH13-40 Shipping and Package :
Payment and Shipment:
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
TM070RDH13-40 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
TM070RDH13-40 FAQ:
Q: Do you accept sample orders of TM070RDH13-40 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of TM070RDH13-40 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of TM070RDH13-40 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of TM070RDH13-40 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
