5.7 Inch RGB 640X480 LCD Screen Display Panel Replacement Maintenance AA057VG12
Product Details:
| Place of Origin: | China |
| Brand Name: | Mitsubishi |
| Model Number: | AA057VG12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA057VG12 | Screen Size: | 5.7 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 105PPI | Active Area(mm): | 115.2 × 86.4 (H×V) |
| Outline(mm): | 135 × 104.6 × 8.85 (H×V×D) | Bezel Area(mm): | 120.4 × 91.6 (H×V) |
| Mass: | 165g (Typ.) | Used For: | Industrial |
| Highlight: | 5.7 Inch LCD Screen Display Panel,LCD Screen Display Panel AA057VG12 |
||
Product Description
AA057VG12 5.7 inch 640(RGB)×480 LCD SCREEN display panel Replacement maintenance
AA057VG12 Product details :
| Mitsubishi LCD SCREEN AA057VG12 | |
| manufacturer | Mitsubishi |
| Model Name | AA057VG12 |
| screen size | 5.7 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 640(RGB)×480 (VGA) 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 115.2 × 86.4 (H×V) |
| physical dimension | 135 × 104.6 × 8.85 (H×V×D) |
| Visual size | 120.4 × 91.6 (H×V) |
| surface treatment | Hard coating (2H), Antireflection |
| Brightness | 500 cd/m² (Typ.) |
| Contrast | 185 : 1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Optical mode | TN, Normally White, Transflective |
| Viewing angle | 80/80/50/65 (Typ.)(CR≥10) |
| Responding time | 4/16 (Typ.)(Tr/Td) ms |
| Number of color | 262K 36% NTSC |
| Backlight type | WLED , 100K hours , With LED Driver |
| Panel weight | 165g (Typ.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit) , Connector 33 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA057VG12 5.7 inch 640(RGB)×480 LCD SCREEN display panel Replacement maintenance | |

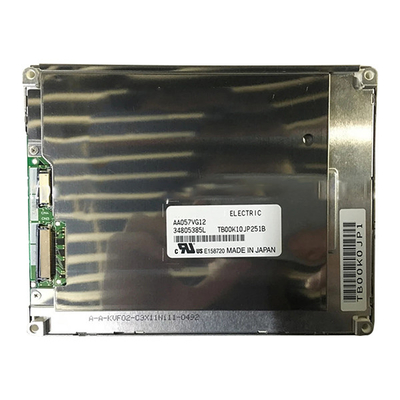

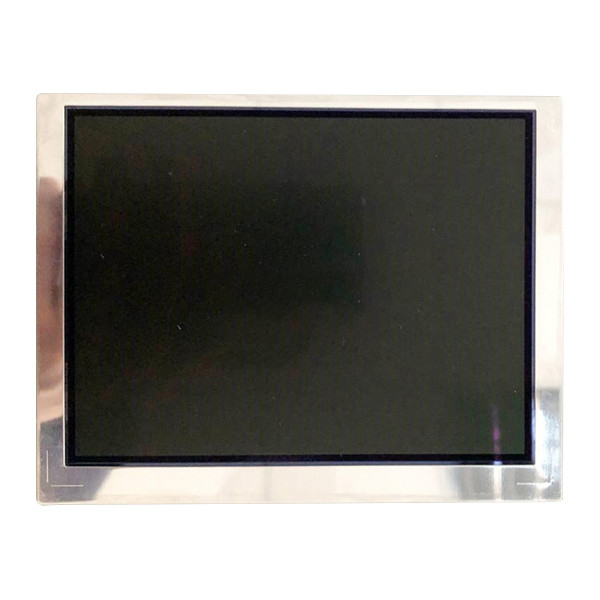

The display is just same as the photos. The warranty is 6 months.
Working hours: 9:00a.m.~18:30p.m., Monday to Saturday (China Time), except official holidays.
If you need more than 10 pcs, please contact us for a good discount.
1. Each lcd will be strictly tested with professional testing board to make sure it will work for your device.
2. If the item is defective, pls notify us within 3 days after receiving. We promise to offer you with the most satisfiying after-sale service.
AA057VG12 IMPORTANT:
PLEASE CONTACT US WHEN YOU DON'T RECEIVE YOUR PARCELS IN 30 DAYS. Parcels would be returned if unclaimed in 15-30 days.
We use the fastest shipping service according to the freight you pay, Delivery in 7-15 days to most European, North American and Asian countries. Up to 30-45 days in other countries. Express shipping services available(DHL/FEDEX/TNT/ARAMEX/UPS)
DHL / FEDEX / UPS services are available. Please contact us for details if they are not listed in the shipping methods.
AA057VG12 Payment:
1) All major credit cards are acceptable through secure payment processor ESCROW.
2) If you can't immediately checkout after auction close, please wait for a few minutes and retry.
3) If you have any problem on payment, please contact us.
AA057VG12 Shipping and Package :
AA057VG12 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
AA057VG12 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
AA057VG12 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
AA057VG12 FAQ:
Q: If I place order now,when will you ship the goods of AA057VG12 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of AA057VG12 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods AA057VG12 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of AA057VG12 ?
A: Of course!If you make a large order, we will give you a discount.
