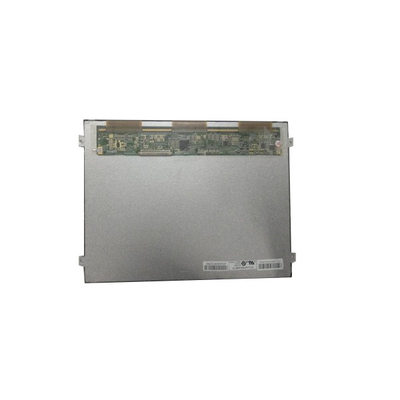

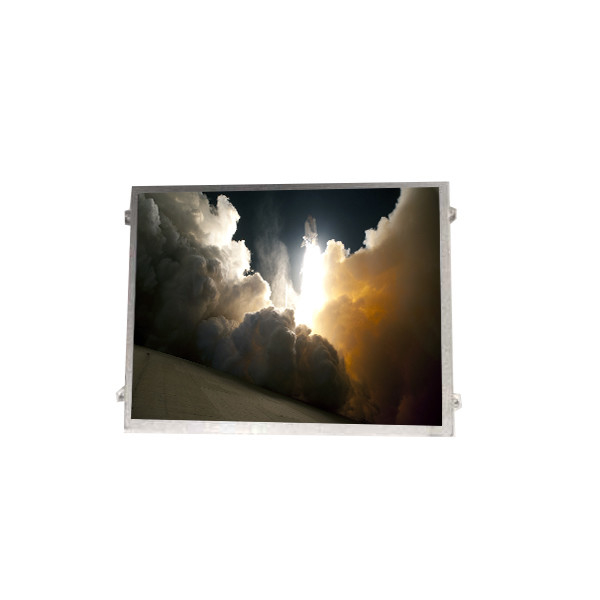

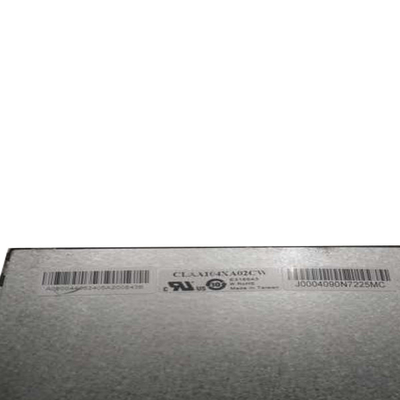

10.4 Inch RGB 1024X768 LCD Screen Display Module Panel CPT CLAA104XA02CW
Product Details:
| Place of Origin: | China |
| Brand Name: | CPT |
| Model Number: | CLAA104XA02CW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | CLAA104XA02CW | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 123PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 213.2(W)×160.4(H) Mm | Outline Size: | 236(W)×174.3(H)×7.4(D) Mm |
| Weight: | 385g | Application: | Industrial |
| High Light: | CPT LCD Screen Display,Antiglare LCD Screen Display Module,6 o'clock LCD Display Module |
||
Product Description
CLAA104XA02CW Original 10.4 inch For CPT 1024(RGB)×768 LCD Screen Display Module Panel CLAA104XA02CW
CLAA104XA02CW Product details :
| CPT LCD SCREEN CLAA104XA02CW | |
| Manufacturer | CPT |
| Model Name | CLAA104XA02CW |
| Screen Size | 10.4 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 123PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm) | 236 × 174.3 × 7.4 (H×V×D) |
| Bezel Area(mm) | 213.2 × 160.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 47% NTSC |
| Light Source | WLED [3S13P] , 30K hours , W/O Driver |
| Weight | 385g |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| CLAA104XA02CW Original 10.4 inch For CPT 1024(RGB)×768 LCD Screen Display Module Panel CLAA104XA02CW | |
CLAA104XA02CW Ransaction:
• if the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
• 100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
• After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
• at the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
CLAA104XA02CW Shipping and Package :
CLAA104XA02CW Abount Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
CLAA104XA02CW Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
CLAA104XA02CW FAQ:
Q: Do you accept sample orders of CLAA104XA02CW ?
A: Of course!sample order is welcome !
Q: How can I trace my order of CLAA104XA02CW ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of CLAA104XA02CW to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of CLAA104XA02CW ?
A: Of course!If you make a large order, we will give you a discount.
