PD064VT8 LCD Screen Display Module Panel 6.4 Inch RGB 640X480
Product Details:
| Place of Origin: | China |
| Brand Name: | PVI |
| Model Number: | PD064VT8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | PD064VT8 | Diagonal Size: | 6.4 Inch |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480 [VGA] 125PPI | Active Area: | 129.6(H)×97.44(V) Mm |
| Outline Dim.: | 175.4(H)×126.9(V)mm | Bezel Area: | 134.8(H)×101.8(V) Mm |
| Weight: | 321±15g | Designed For: | Industrial |
| High Light: | PD064VT8 LCD Screen Display,LCD Screen Display 6.4 inch |
||
Product Description
PD064VT8 Original 6.4 inch 640(RGB)×480 LCD Screen Display Module Panel
PD064VT8 Product details :
| PVI LCD SCREEN PD064VT8 | |
| Manufacturer | PVI |
| Model Name | PD064VT8 |
| Screen Size | 6.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)*480 [VGA] 125PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 129.6 * 97.44 mm (H*V) |
| physical dimension | 175.4 * 126.9 mm (H*V*D) |
| Visual size | 134.8 * 101.8 mm (H*V) |
| Surface treatment | Matte |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 60/60/40/55 (Typ.)(CR≥10) |
| Number of colors | 262K |
| Backlight type | 3S8P×2CN WLED, 30K hours, no driver |
| Screen weight | 321±15g |
| Touch function | No touch |

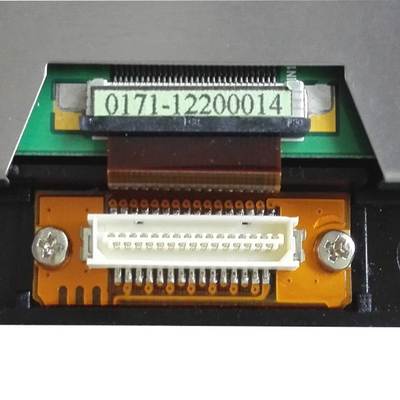

| signal system | TTL (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 5.0V (Typ.)(VCC) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
| PD064VT8 Original 6.4 inch 640(RGB)×480 LCD Screen Display Module Panel | |
