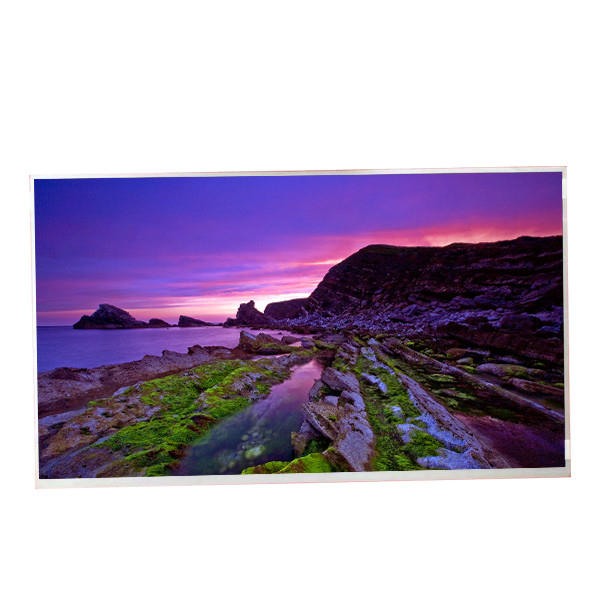

M238HCJ-L3N LCD Screen Display Panel Symmetry AAS Normally Black Transmissive
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M238HCJ-L3N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | M238HCJ-L3N | Panel Size: | 23.8 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 (FHD) 92PPI | Display Area: | 527.04 × 296.46 (H×V) |
| Outline Size: | 540.24 × 316.66 × 11.95 (H×V×D) | Contrast Ratio: | 1000 : 1 (Min.) (TM) |
| Color Depth: | 16.7M 72% NTSC | Application: | Desktop Monitor |
| High Light: | AAS LCD Screen Display Panel,Symmetry LCD Screen Display Panel |
||
Product Description
M238HCJ-L3N 23.8 inch with full viewing angle use for multi touch table display
M238HCJ-L3N Product details :
| Innolux LCD SCREEN M238HCJ-L3N | |
| Manufacturer | Innolux |
| Model Name | M238HCJ-L3N |
| Screen Size | 23.8 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 92PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Outline(mm) | 540.24 × 316.66 × 11.95 (H×V×D) |
| Bezel Area(mm) | 530.24 × 299.66 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/7 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 4 strings WLED , 30K hours , No Driver |
| Mass | 2.30Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M238HCJ-L3N 23.8 inch; 24 inch AAS normally black tft lcm with full viewing angle use for multi touch table display | |
M238HCJ-L3N Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
M238HCJ-L3N Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
M238HCJ-L3N Please Noted
we are not responsible for any customsduty or import tax .
M238HCJ-L3N Shipping :
1. Standard transportation and distribution by express line.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
M238HCJ-L3N Return Policy :
All items can be returned within 7 days after receiving the package for refund (via PayPal), if the package is not opened. Buyer needs to be responsible for two-way shipping fee.
All returned products must be in original condition, any used item will not be eligible for refund and exchange.
The 20% re-stocking fee of original item cost will be applied for all non-defective, screen not used, screen not need, and wrong screen, order return or exchange.
A Return Merchandise Authorization number (RMA) is required for all return. Without RMA number the return will not be accepted.
We only accept the original package. Please make sure the item have no man-made damage
M238HCJ-L3N Rev.C1 FAQ:
Q: Can you tested the M238HCJ-L3N before shipping ?
A: Of course , our lcd panel M238HCJ-L3N was Strictly tested before shipping.
Q: How to order Innolux M238HCJ-L3N ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel M238HCJ-L3N I received can't work ?
A: Innolux M238HCJ-L3N was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel
.
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
M238HCJ-L3N Shipping and Package :
