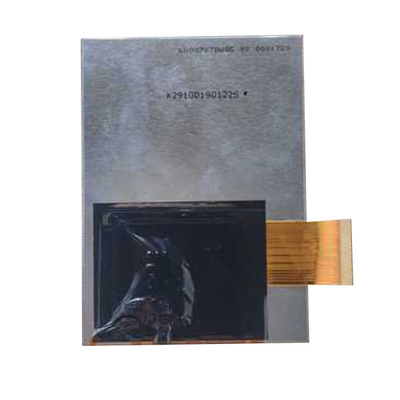

HSD050B8W7-A00 5.0 inch new lcd display monitors for Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050B8W7-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | HSD050B8W7-A00 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×854, FWVGA 196PPI | Active Area: | 62.064(W)×110.422(H) Mm |
| Outline Size: | 64.83 × 117.9× 0.8 (H×V×D) | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Backlight: | No B/L | Application: | Mobile Phone |
| Good View At: | 12 O'clock | Glass Thickness: | 0.40+0.40 Mm |
Product Description
HSD050B8W7-A00 5.0 inch new lcd display monitors for Mobile Phone
HSD050B8W7-A00 Product details :
| Brand | HannStar |
| Model P/N | HSD050B8W7-A00 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 480(RGB)×854, FWVGA 196PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.064(W)×110.422(H) mm |
| Bezel Opening | - |
| Outline(mm) | 64.83 × 117.9× 0.8 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 13.9% (Typ.)(without Polarizer) |
| Color Depth | 16.7M 60%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | SuggestCOGNT35510S, NT35512, OTM8019A, OTM8018B, HX8379A, RM68171, RM68172, ILI9806E, ILI9806C, JD9161 |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
HSD050B8W7-A00 Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
HSD050B8W7-A00 Shipping and Package :
HSD050B8W7-A00 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
HSD050B8W7-A00 Shipping :
1. Standard transportation and distribution by express line.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
HSD050B8W7-A00 Noted:
If you want any help you can contact with your customer service or give us your email box,we will reply you within 12 hours
All products will be tested before shipping
For all order must return to us if any reason you don't like it ,you can order it then you accept the rule, we paid the shipping cost
from china, the buyer must pay the return cost by EMS only,please don't order if you don't accept
HSD050B8W7-A00 FAQ:
Q: Can I pay my order of HSD050B8W7-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD050B8W7-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of HSD050B8W7-A00 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of HSD050B8W7-A00 ?
A: we will give you tracking number then you can trace your order from website.
