M236HJJ-L30 23.6 inch 1920*1080 30 pins Connector LCD Display Pane LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M236HJJ-L30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M236HJJ-L30 | Screen Size: | 23.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 93PPI | Active Area(mm): | 521.28 × 293.22 (H×V) |
| Outline(mm): | 544.8 × 320.5 × 11.5 (H×V×D) | Color Depth: | 16.7M 72% NTSC |
| Mass: | 2.31±0.11Kgs | Used For: | Desktop Monitor |
Product Description
M236HJJ-L30 23.6 inch 1920*1080 30 pins Connector LCD Display Pane LCD screen
M236HJJ-L30 Product de tails :

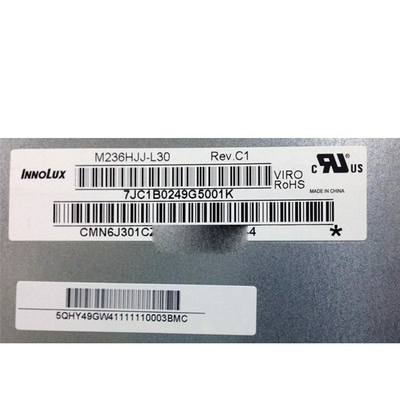

| Innolux LCD SCREEN M236HJJ-L30 | |
| Manufacturer | Innolux |
| Model Name | M236HJJ-L30 |
| Screen Size | 23.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 93PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 521.28 × 293.22 (H×V) |
| Outline(mm) | 544.8 × 320.5 × 11.5 (H×V×D) |
| Bezel Area(mm) | 525.22 × 297.22 (H×V) |
| Treatment | Antiglare (Haze 3%), Hard coating (3H) |
| Luminance | 250cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 10 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 4 strings WLED , 30K hours , No Driver |
| Mass | 2.31±0.11Kgs |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| M236HJJ-L30 23.6 inch 1920*1080 30 pins Connector LCD Display Pane LCD screen | |
welcome :
Please confirm that the specific parts of your machine are faulty before purchasing the corresponding parts. If you cannot confirm the specific parts failure, please do not purchase it.thank you very much!
Some of the internal parts are detached from the machine, it is not full new, but has been tested and 100% working perfect. Please use it with confidence. If you do not agree please do not buy!thank you!
M236HJJ-L30 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 10-25 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift,the shipping address as according to your paypal address.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
M236HJJ-L30 Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us
M236HJJ-L30 International Orders:
1.Buyer is responsible for all customs fees and import taxes.
2.International orders may take several weeks longer than expected to arrive due to delays in customs processing.
3.We usually declare low prices by default, which is about 1/2 or 1/3 of the product price.This helps most buyers reduce tariffs, but if you encounter a customs declaration, please contact us and we will reply to you at any time.(If sending to Brazil, we have to declare the actual order amount)
4.And to send to South Korea via Fedex or DHL , we to declare actual price,the recipient needs to provide a customs clearance serial number, for example: "P123456789123" . Please provide us with the customs clearance serial number.
M236HJJ-L30 FAQ:
Q: How can I trace my order of M236HJJ-L30 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of M236HJJ-L30 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of M236HJJ-L30 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods M236HJJ-L30 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
M236HJJ-L30 Shipping and Package :
