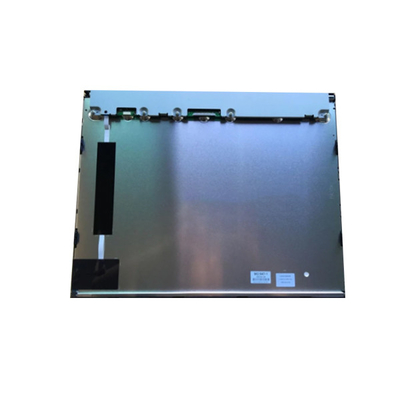

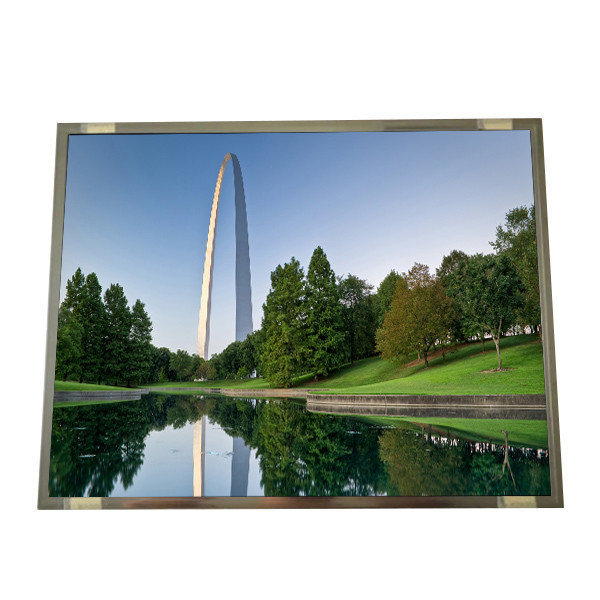

LQ201U1LW31 Original 20.1 inch 1600×1200 LCD Display for military Application
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ201U1LW31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ201U1LW31 | Diagonal Size: | 20.1 Inch |
|---|---|---|---|
| Pixel Format: | 1600(LCR)×1200 [UXGA] 99PPI | Active Area: | 408(H)×306(V) Mm |
| Outline Dim.: | 436(H)×335(V)×21.2(D) Mm | Bezel Area: | 413.2(H)×311.2(V) Mm |
| Weight: | 2.40Kgs (Max.) | Application: | Medical Imaging |
Product Description
LQ201U1LW31 Original 20.1 inch 1600×1200 LCD Display for military Application
Product details :
| SHARP LCD SCREEN LQ201U1LW31 | |
| manufacturer | SHARP |
| Model Name | LQ201U1LW31 |
| screen size | 20.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1600(RGB)×1200(UXGA) 99PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 408 × 306 mm (H×V) |
| visible size | 413.2 × 311.2 mm (H×V) |
| physical dimension | 436 × 335 × 21.2 mm (H×V×D) |
| surface | Matte (Haze 40%), Hard coating (2H) |
| Brightness | 1000 (Typ.) |
| Contrast | 1400 : 1 (Typ.) [Transmission] |
| Optical mode | ASV, Normally Black, Transflective |
| Viewing angle | 85/85/85/85 (Min.)(CR≥10) |
| Responding time | 30 (Typ.)(Tr+Td) ms |
| Number of color | grayscale |
| Backlight type | WLED , 50K hours, with LED driver |
| Panel weight | 2.40kg (Typ.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , terminal, 30 pins |
| Supply voltage | 12.0V (Typ.) |
| Maximum rating | Storage temperature: -25 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| LQ201U1LW31 Original 20.1 inch 1600×1200 LCD Display for military Application | |
LQ201U1LW31 Payment and Tax:
1.Paypal is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
LQ201U1LW31 Shipping and Package :
LQ201U1LW31 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LQ201U1LW31 Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.
LQ201U1LW31 FAQ:
Q: Can you give me a discount if I need a large quantity of LQ201U1LW31 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LQ201U1LW31 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LQ201U1LW31 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
