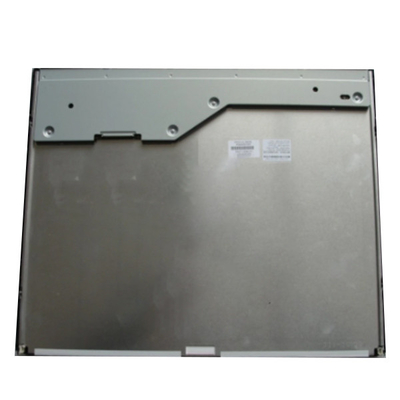

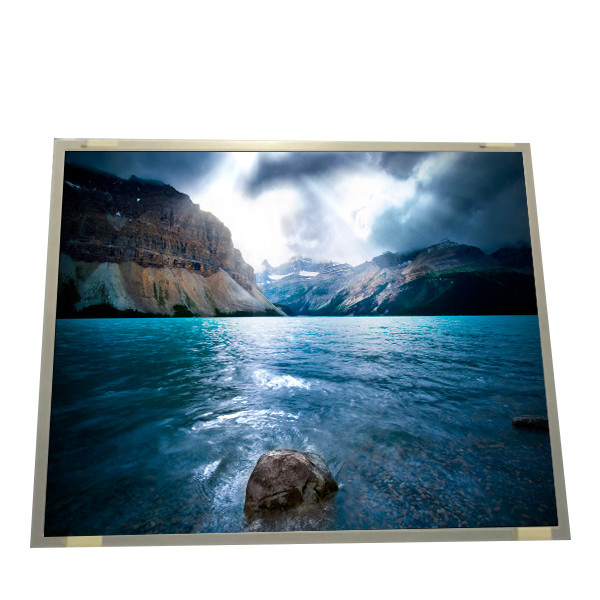

LQ190E1LW52 Original 19.0 inch 1280(RGB)×1024 LCD Display for Industrial Equipment Application
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ190E1LW52 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ190E1LW52 | Panel Size: | 19.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA, 86PPI | Display Area: | 376.32(W)×301.056(H) Mm |
| Bezel Opening: | 382.20(W)×307.00(H) Mm | Outline Size: | 404.2(W)×330(H) ×15.7(D) Mm |
| Weight: | 1.85Kgs (Max.) | Application: | Industrial |
Product Description
LQ190E1LW52 Original 19.0 inch 1280(RGB)×1024 LCD Display for Industrial Equipment Application
Product details :
| SHARP LCD SCREEN LQ190E1LW52 | |
| manufacturer | SHARP |
| Model Name | LQ190E1LW52 |
| screen size | 19.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×1024SXGA 86PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 376.32 × 301.056 (H×V) mm |
| visible size | 382.20 × 307.00 (H×V) mm |
| physical dimension | 404.2 × 330 × 15.7 (H×V×D) mm |
| surface | Matte (Haze 40%), Hard coating (2H) |
| Brightness | 450 (Typ.) |
| Contrast | 1000 : 1 (Typ.) [Transmission] |
| Optical mode | ASV, Normally Black, Transflective |
| Viewing angle | 85/85/85/85 (Min.)(CR≥10) |
| Responding time | 12 (Typ.)(Tr+Td) |
| Number of color | 16.7M , 71% NTSC |
| Backlight type | 5 strings × 2CN WLED , 30K hours, without driver |
| Panel weight | 1.85Kgs (Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins , terminal |
| Supply voltage | 5.0V (Typ.) |
| Maximum rating | Operating: 0 ~ 60 °C ; Storage: -25 ~ 60 °C |
| LQ190E1LW52 Original 19.0 inch 1280(RGB)×1024 LCD Display for Industrial Equipment Application | |
Welcome to YONGS LQ190E1LW52 :
- We have the supply of technology, can provide you with technical advide.Please send your RFQ(request for quoting) to get latest price.
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition. If you need more than 10 pcs, please contact us for a good discount.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.We have the supply of technology, can provide you with technical adviPlease send your RFQ(request for quoting) to get latest price.
LQ190E1LW52 Shipping and Package :
LQ190E1LW52 About Shipping:
- Please provide the full name of consignee and detailed address for shipping. Full Tested 100% Working By Real equipment before Shipping.
- All items will be shipped within 72 business hours upon receipt of payment (except Saturday,Sunday and Statutory holidays).
- We are not able to take any responsibility for any custom delay or tax. Import duties, taxes and charges are not included in the item price or shipping charges.
- We strive our best to provide you the most reliable, affordable way of shipping service.But sometimes international delivery is highly depended on the courier company and local customs/duties.
- If you do not receive your item on time, please contact us immediately for further assistance.
LQ190E1LW52 Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
FAQ:
Q: If I place order now,when will you ship the goods of LQ190E1LW52 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LQ190E1LW52 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods LQ190E1LW52 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
