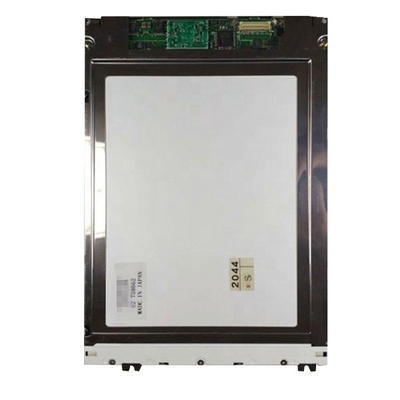

LQ150X1LG11 15.0 inch 1024(RGB)×768 LVDS 30pin TFT WLED lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1LG11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ150X1LG11 | Panel Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.2(W)×231.1(H) Mm | Outline Size: | 331.6(W)×254.7(H)mm |
| Panel Weight: | 950g (Max.) | Application: | Industrial |
Product Description
LQ150X1LG11 15.0 inch 1024(RGB)×768 LVDS 30pin TFT WLED lcd display
Product details :
| SHARP LCD SCREEN LQ150X1LG11 | |
| manufacturer | SHARP |
| Model Name | LQ150X1LG11 |
| screen size | 15.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768[XGA] 85PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 304.128 × 228.096 mm (H×V) |
| visible size | 307.2 × 231.1 mm (H×V) |
| physical dimension | 331.6 × 254.7 mm (H×V×D) |
| surface | Matte , Hard coating (3H) |
| Brightness | 600 cd/m² (Typ.) |
| contrast | 800:1 (Typ.) |
| Viewing angle | 80/80/65/80 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 262K/16.2M , 49% NTSC |
| Reaction time | 30 (Typ.)(Tr+Td) ms |
| Backlight type | WLED , 70K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| screen weight | 950g(Max.) |
| Signal | LVDS (1 ch,8-bit) , terminal, 30 pins |
| drive voltage | 3.3V (Typ.) |
| working | Operating temperature: 0 ~ 50 °C ; Storage temperature: -25 ~ 60 °C |
| LQ150X1LG11 15.0 inch 1024(RGB)×768 LVDS 30pin TFT WLED lcd display | |
