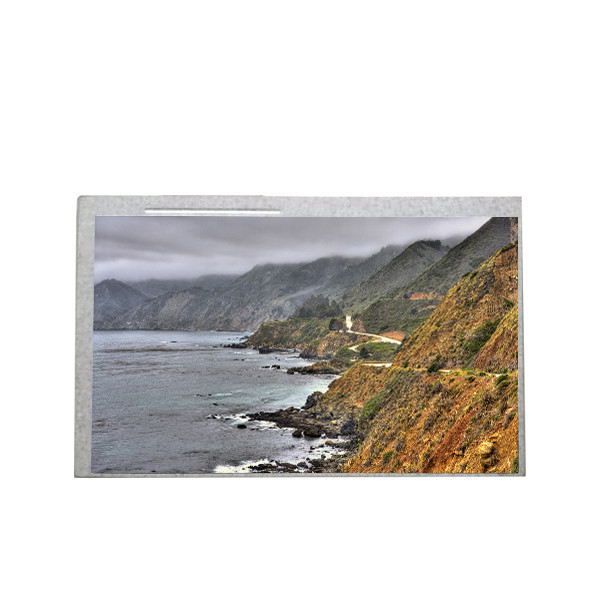

Innolux LW700AT9309 replacement LCD screen RGB TFT 40pins TTL 7 inch 800x480 LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | LW700AT9309 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LW700AT9309 | Panel Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480 (WVGA) 133PPI | Display Area: | 152.4 × 91.44 (H×V) |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Response Time: | 5/11 (Typ.)(Tr/Td) Ms |
| Color Depth: | 262K 45% NTSC | Application: | Digital Photo Frame Portable DVD Player |
Product Description
Innolux LW700AT9309 replacement LCD screen RGB TFT
Product details :
| Chimei Innolux LCD SCREEN LW700AT9309 | |
| Manufacturer | Chimei Innolux |
| Model Name | LW700AT9309 |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Outline(mm) | 165 × 104.44 × 5.7 (H×V×D) |
| Bezel Area(mm) | 155.30 × 94.30 (H×V) |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 5/11 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 3S8P WLED , 20K hours , No Driver |
| Mass | 125g (Typ.) |
| Used for | Digital Photo Frame Portable DVD Player |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | TTL (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Innolux LW700AT9309 replacement LCD screen RGB TFT 40pins TTL 7 inch 800x480 LCD Display Module | |
Description:
1.Highest quality touch LCD screen replacement parts.
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
5.Exactly the same items and pictures.
6.if you have any problem with the item, please contact me before you buy it, we will reply to you as soon as possible.
7.Each item has been checked and in good condition before shipping.
8. It is shipped in protective bubble wrap and has all the protective screen coatings, so, please do not worry.
Friendly Reminder :
- Installation guide not included, we are not responsible for any damage caused by installation of this accessory, please be sure you know how to install before bid.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.
- We only accept return in original condition and strongly recommend customer to test item before installation.
Tips that Will help:
For Brazil buyers, if you select Express shipping, like FED DHL UPS Ect. Please do provide company name and CNPJ number or CPF Number.
Please check your messages often, we may have some issues need your confirmation before shipping.
Please provide your FULL NAME for shipping.
Make the selection if the product has parameters, or note in the order.
Chile, Argentina buyers please provide your Tax number for express shipping like UPS.
Postal mail is cheap but not fast, especially for some remote countries. If you are urgent, please inquiry faster methods.
If ship by express, make sure you are NOT in remote area, or extra costs needed, and please note that it is for remote pleace delivery : Charged by YONGS Company !
Tracking number is available for every package. Track here: www.17track.net/index_en.shtml.
Standard batteries, liquid and other prohibited parts are usually removed before shipping if your item are these , we may shipped by Special Line which will charged extra dollars
Customs, Duties and Import Fees are the buyer's responsibilities. We are not responsible for customs delays or any duties, tariffs, Value-Added Tax (VAT) or other fees which may be incurred with your purchase. Be know your customs policy.
Shipping :
- The items you ordered will be shipped out in 1~7 business days after your payment is completed.
Warranty:
- If the item is defective or has other problems, please contact us within 15 working days after receiving the item to resolve the problem.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
FAQ:
Q: If I order LW700AT9309 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for LW700AT9309 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LW700AT9309 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LW700AT9309 at a very low value ?
A: Yes , we can . pls inform us before shipping .
