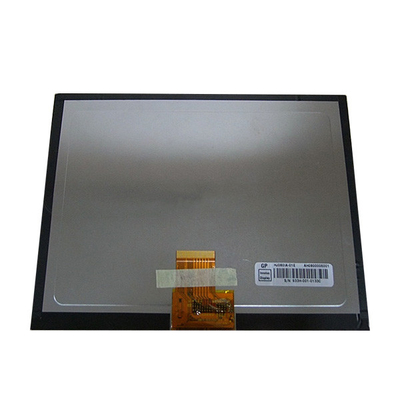

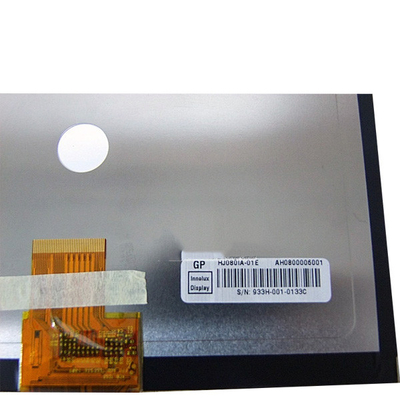

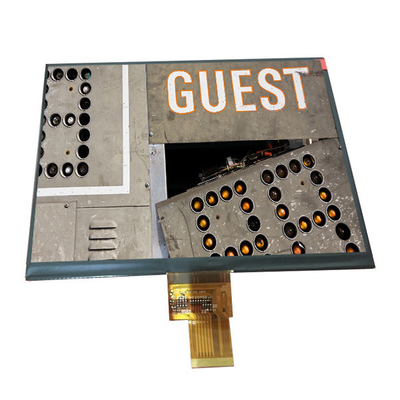

8 inch lcd screen 1024*768 lcd screen module HJ080IA-01E tft lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Chimei Innolux |
| Model Number: | HJ080IA-01E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | HJ080IA-01E | Panel Size: | 8.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 (XGA) 160PPI | Display Area: | 162.048 × 121.536 (H×V) |
| Brightness: | 350 Cd/m² (Typ.) | Response Time: | 25 (Typ.)(Tr+Td) Ms |
| Color Depth: | 262K/16.7M 50% NTSC | Application: | Pad & Tablet |
Product Description
8 inch lcd screen 1024*768 lcd screen module HJ080IA-01E tft lcd screen
Product details :
| Chimei Innolux LCD SCREEN HJ080IA-01E | |
| Manufacturer | Chimei Innolux |
| Model Name | HJ080IA-01E |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 160PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 162.048 × 121.536 (H×V) |
| Outline(mm) | 174 × 136 × 2.75 (H×V×D) |
| Treatment | Hard coating |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | 3S11P WLED , 20K hours , No Driver |
| Mass | 120g |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/10.0/18.9/-7.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| 8 inch lcd screen 1024*768 lcd screen module HJ080IA-01E tft lcd screen | |
Product Details:
- Conditions: Before sending the project, We will conduct multiple tests perfect work, the quality is 100% guaranteed.
- If you’re not sure if it’s the right item you need, or you need more quantity . Please contact me before ordering.
- Original LCD Screen and tested before sending.
Friendly Reminder :
- Installation guide not included, we are not responsible for any damage caused by installation of this accessory, please be sure you know how to install before bid.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.
- We only accept return in original condition and strongly recommend customer to test item before installation.
Tips that Will help:
For Brazil buyers, if you select Express shipping, like FED DHL UPS Ect. Please do provide company name and CNPJ number or CPF Number.
Please check your messages often, we may have some issues need your confirmation before shipping.
Please provide your FULL NAME for shipping.
Make the selection if the product has parameters, or note in the order.
Chile, Argentina buyers please provide your Tax number for express shipping like UPS.
Postal mail is cheap but not fast, especially for some remote countries. If you are urgent, please inquiry faster methods.
If ship by express, make sure you are NOT in remote area, or extra costs needed, and please note that it is for remote pleace delivery : Charged by YONGS Company !
Tracking number is available for every package. Track here: www.17track.net/index_en.shtml.
Standard batteries, liquid and other prohibited parts are usually removed before shipping if your item are these , we may shipped by Special Line which will charged extra dollars
Customs, Duties and Import Fees are the buyer's responsibilities. We are not responsible for customs delays or any duties, tariffs, Value-Added Tax (VAT) or other fees which may be incurred with your purchase. Be know your customs policy.
Shipping :
- The items you ordered will be shipped out in 1~7 business days after your payment is completed.
Warranty:
- If the item is defective or has other problems, please contact us within 15 working days after receiving the item to resolve the problem.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of HJ080IA-01E ?
A: Of course!sample order is welcome !
Q: How to make payment of HJ080IA-01E ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of HJ080IA-01E via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Shipping and Package :
