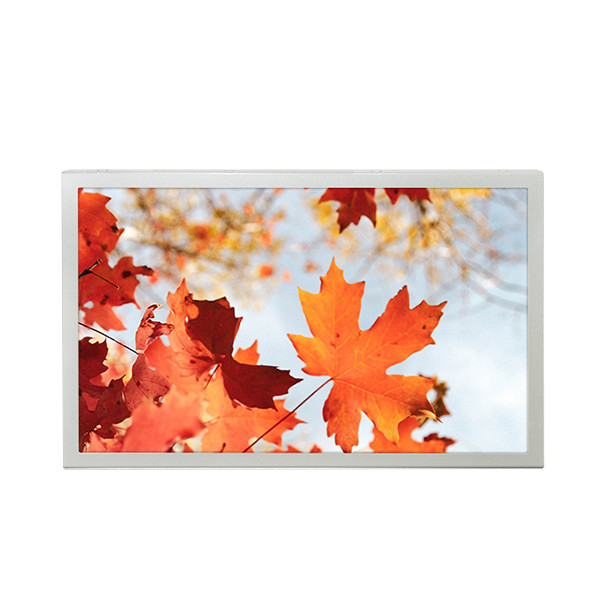

12.1 Inch 1280x800 Industrial LCD Screen Display Module Panel LQ121K1LG53 Hard Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ121K1LG53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ121K1LG53 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA, 124PPI | Display Area: | 261.12(W)×163.2(H) Mm |
| Bezel Opening: | 264.3(W)×167.2(H) Mm | Outline Size: | 278(W)×184(H) ×9.6(D) Mm |
| Weight: | 550g (Typ.) | Designed For: | Industrial / Gaming |
| High Light: | WXGA Industrial LCD Screen Display,Hard coating Industrial LCD Screen Display,LCD Module Panel LQ121K1LG53 |
||
Product Description
Original 12.1 inch 1280*800 Industrial LCD Screen Display Module Panel LQ121K1LG53
Product details :
| SHARP LCD SCREEN LQ121K1LG53 | |
| Brand | SHARP |
| Model Name | LQ121K1LG53 |
| Screen size | 12.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 261.12 × 163.2 (H×V) mm |
| Outline (mm) | 278 × 184 × 9.6 (H×V×D) mm |
| Bezel Opening | 264.3× 167.2 (H×V) mm |
| Contrast | Matte, Hard coating (3H) |
| Display | 400 cd/m² (Typ.) |
| contrast | 800:1 (Typ.) (Transmission) |
| Viewing angle | 80/80/65/80 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 262K/16.2M , 100% sRGB |
| Reaction time | 30(Typ.)(Tr/Td) |
| Backlight type | WLED , 50K hours , With LED Driver |
| Refresh rate | 60Hz |
| Used for | Industrial Gaming |
| Panel weight | 550g (Max.) |
| Signal | LVDS (1 ch, 6/8-bit) , 20 pins , terminal |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| Original 12.1 inch 1280*800 Industrial LCD Screen Display Module Panel LQ121K1LG53 | |
Payment:
We accept T/T & Western Union & PayPal & Escrow service.
Shipping and Package :
Packaging Deatils: Standard package
Delivery Detail: 1-2 days after payment
Shipping :
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
Refund & Replacement:
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
FAQ:
Q: Do you accept sample orders of LQ121K1LG53 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LQ121K1LG53 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of LQ121K1LG53 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LQ121K1LG53 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
