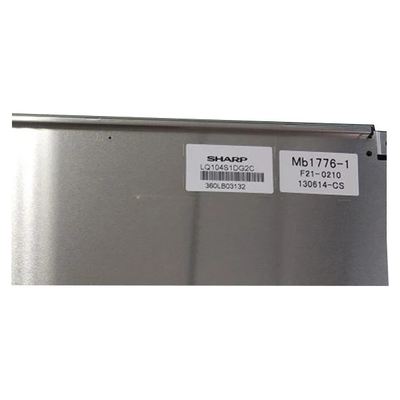

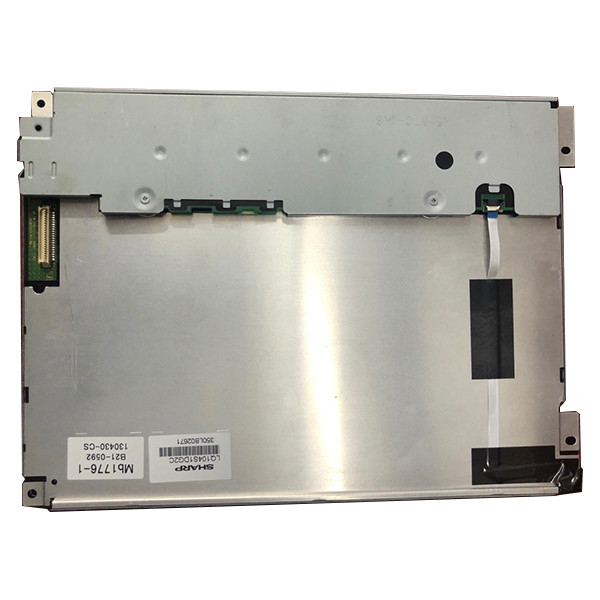

LQ104S1DG2C LCD Panel Display 10.4 Inch RGB 800X600 For Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ104S1DG2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ104S1DG2C | Panel Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 96PPI | Display Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 214.6(W)×162.4(H) Mm | Outline Size: | 246.5(W)×179.3(H) ×11(D) Mm |
| Weight: | 550g (Typ.) | Application: | Industrial |
| High Light: | LQ104S1DG2C LCD Panel Display,10.4 Inch LCD Panel Display |
||
Product Description
Lcd Display LQ104S1DG2C 10.4 inch 800(RGB)×600 Lcd panel for industrial equipment
Product details :
| SHARP LCD SCREEN LQ104S1DG2C | |
| manufacturer | SHARP |
| Model Name | LQ104S1DG2C |
| screen size | 10.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 SVGA 96PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2(W)×158.4(H) mm |
| physical area | 246.5(W)×179.3(H) ×11(D) mm |
| open area | 214.6(W)×162.4(H) mm |
| Contrast | Matte, Hard coating (3H) |
| Display | 350 cd/m² (Typ.) |
| contrast | 500:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/50/60 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 35 (Typ.)(Tr/Td) ms |
| Backlight type | 2 pcs CCFL, 50K hours, |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 550g (Max.) |
| Signal | LVDS (1 ch, 6-bit) , 41 pins , terminal |
| drive voltage | 3.3V (Typ.) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| Lcd Display LQ104S1DG2C 10.4 inch 800(RGB)×600 Lcd panel for industrial equipment | |
