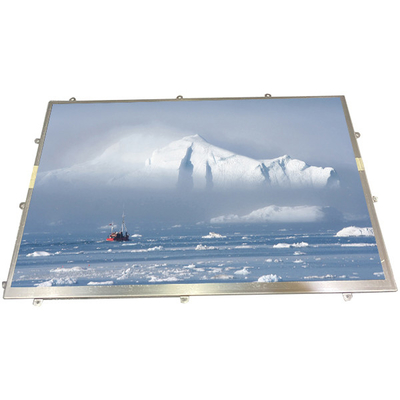

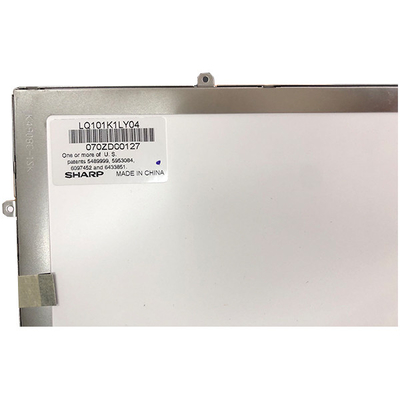

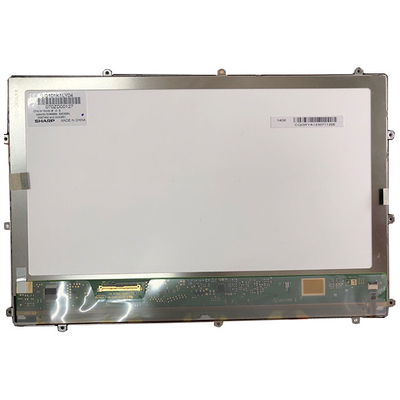

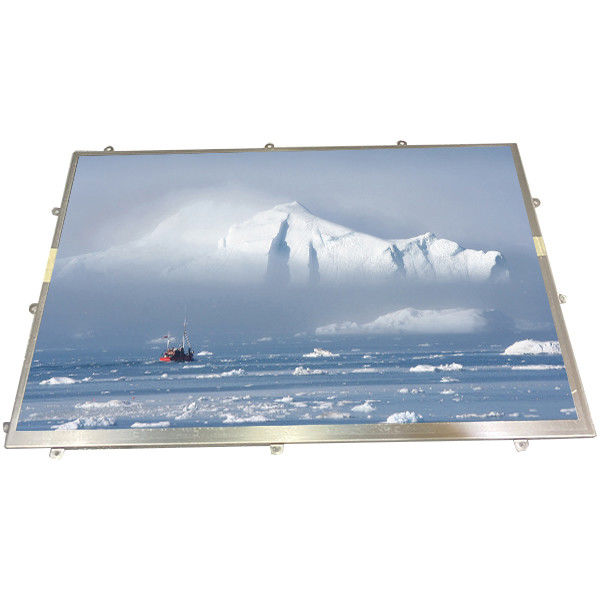

Original 10.1 Inch LCD Screen Display Module Panel 1280×800 LQ101K1LY04
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ101K1LY04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ101K1LY04 | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800 (WXGA) 149PPI | Active Area(mm): | 216.96 × 135.6 (H×V) |
| Outline(mm): | 237.94 × 156.66 × 5.3 (H×V×D) | Bezel Area(mm): | 220.56 × 139.2 (H×V) |
| Mass: | 165/185g (Typ./Max.) | Used For: | Pad & Tablet / Industrial |
| High Light: | WXGA LCD Screen Display,LCD Screen Display 1280×800,LQ101K1LY04 LCD Module Panel |
||
Product Description
Original 10.1 inch 1280×800 LCD Screen Display Module Panel LQ101K1LY04
Product details :
LQ101K1LY04 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 237.94(W)×156.66(H)×5.3(D) mm, viewing area size of 220.56(W)×139.2(H) mm, with surface treament of Glare (Haze 0%), Reflection 1.25% (Typ.), net weight of 165/185g (Typ./Max.). As a PSV, Normally Black, Transmissive LCM product, LQ101K1LY04 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. LQ101K1LY04 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
| SHARP LCD SCREEN LQ091B1LW01 | |
| manufacturer | SHARP |
| Model Name | LQ091B1LW01 |
| screen size | 9.1inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 822(RGB)×260, 95PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 219.474(W)×69.42(H) mm |
| physical area | 240(W)×86(H) ×10.5(D) mm |
| open area | 222.4(W)×72.4(H) mm |
| Contrast | Matte, Hard coating (3H) |
| Display | 380 cd/m² (Typ.) |
| contrast | 800:1 (Typ.) (Transmission) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 16.7M , 76% NTSC |
| Reaction time | 30 (Typ.)(Tr/Td) ms |
| Backlight type | WLED , 50K hours, |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 230g (Typ./Max.) |
| Signal | LVDS (1 ch, 8-bit) , 30 pins , terminal |
| drive voltage | 3.3V (Typ.) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| LQ091B1LW01 Original 9.1 inch 822×260 LCD Display for Industrial Equipment Application | |
HIGHEST QUALITY STANDARD DISPLAYS:
As a distributor,YONGS display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
Shipping and Package :
shipping:
After-sales Service: When order complete,an email will be sent out to confirm the value andshipment methods.Then the shipment tracking number will be shared with email asalways.100% strict inspection and test before shipment. Replace in one week once originaldefective goods found on arrival.Enjoy 1 year free replacement warranty.
Guarantee and Refund:
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 90 days )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
FAQ:
Q: If I place order now,when will you ship the goods of LQ101K1LY04 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods LQ101K1LY04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of LQ101K1LY04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LQ101K1LY04 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
