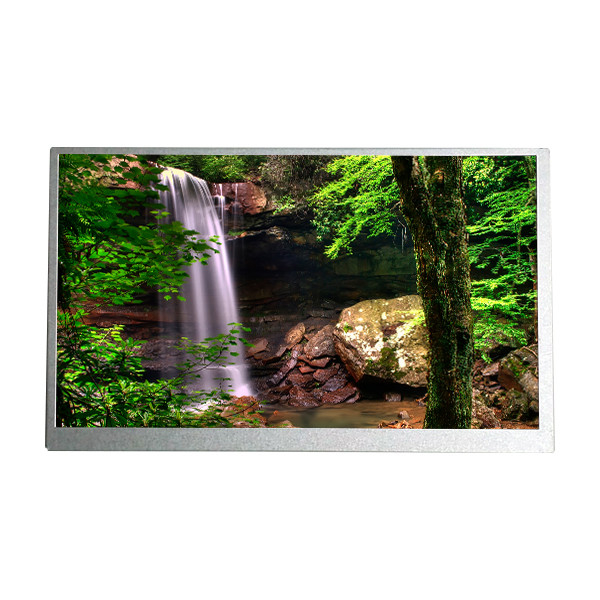

LQ090Y3DG01 9.0 Inch LCD Screen Display Panel Antiglare Hard Coating Surface
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ090Y3DG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ090Y3DG01 | Panel Size: | 9.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA, 104PPI | Display Area: | 198(W)×111.696(H) Mm |
| Outline Size: | 211.1(W)×128.4(H) Mm | Surface: | Antiglare, Hard Coating (3H) |
| Panel Weight: | 255g | Application: | Industrial / Digital Photo Frame / Portable DVD Player |
| High Light: | LQ090Y3DG01 LCD Screen Display Panel,Antiglare LCD Screen Display Panel |
||
Product Description
Original LQ090Y3DG01 Brand New 9.0 inch LCD Screen Display Panel
Product details :
| SHARP LCD SCREEN LQ090Y3DG01 | |
| Manufacturer | SHARP |
| Model Name | LQ090Y3DG01 |
| Screen size | 9.0 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA, 104PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 198(W)×111.696(H) mm |
| Bezel Opening | 201.0(W)×114.7(H) mm |
| Outline Dim. | 211.1(W)×128.4(H)×7.1(D) mm |
| Treatment | Matte, Hard coating (3H) |
| Display | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing angle | 70/70/50/70 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 16.7M , 76% NTSC |
| Reaction time | 25 (Typ.)(Tr/Td) ms |
| Backlight type | WLED , 20K hours , With LED Driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Panel weight | 255g (Typ./Max.) |
| Application | Industrial / Digital Photo Frame / Portable DVD Player |
| Interface Type | Parallel RGB (1 ch, 8-bit) , 50 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| Original LQ090Y3DG01 Brand New 9.0 inch LCD Screen Display Panel | |
