Replacement LCD Display Panel LQ084S3DG01 8.4 Inch RGB 800X600 SVGA 119PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ084S3DG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ084S3DG01 | Panel Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA, 119PPI | Display Area: | 170.4(W)×127.8(H) Mm |
| Outline Size: | 199.5(W)×149.5(H) Mm | Viewing Angle: | 80/80/45/80 (Typ.)(CR≥10) |
| Panel Weight: | 405g (Max.) | Application: | Industrial |
| High Light: | SVGA LCD Display Panel,LQ084S3DG01 LCD Display Panel |
||
Product Description

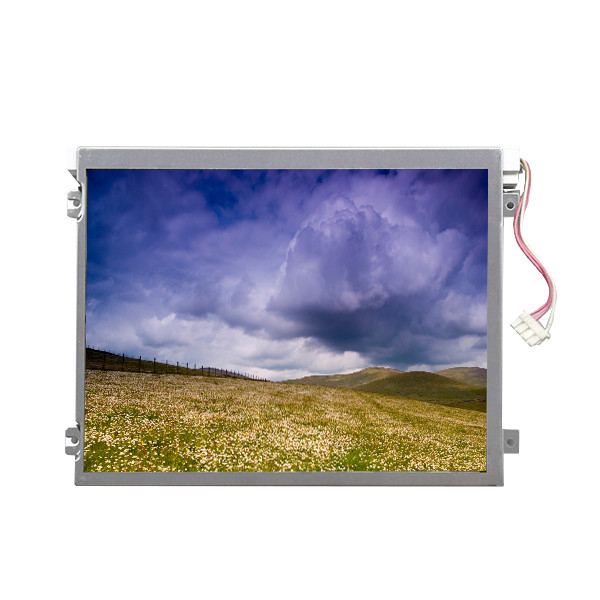

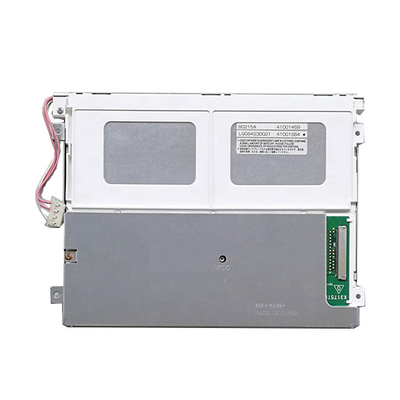

LQ084S3DG01 Original 8.4 inch SVGA Replacement LCD Display Panel
Product details :
| SHARP LCD SCREEN LQ084S3DG01 | |
| manufacturer | SHARP |
| Model Name | LQ084S3DG01 |
| screen size | 8.4inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×600 [SVGA] 119PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 170.4 × 127.8 mm (H×V) |
| physical area | 199.5 × 149.5 mm (H×V) |
| Contrast | Matte,Hard coating (2H) |
| Display | 350 cd/m² (Typ.) |
| contrast | 320:1 (Typ.) (Transmission) |
| Viewing angle | 80/80/45/80 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 262K |
| Reaction time | 7/23 (Typ.)(Tr/Td) ms |
| Backlight type | 2 pcs CCFL , 50K hours, |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 405g (Typ./Max.) |
| Signal | LVDS (1 ch, 6/8-bit) , 20pins , terminal |
| drive voltage | 3.3V (Typ.) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| LQ084S3DG01 Original 8.4 inch SVGA Replacement LCD Display Panel | |
Why choose us?
1.High quality,aff of items will be tested ok before ship out.
2.Best price,have a big inventory,so our price is more advantageous thanother companies.
3.Fast delivery,ship within 24 hours.
4.Small order accepted,MOQ 1PcS.
Payment:
Standard payment terms: T/T,L/C.
Online trade assurance order, all is up to you.
More payment terms could be provided.(PAYPAL WESTERN UNION, or others)
Shipping and Package :
Packing Details for volume production order:
(1) Packed the LCD into ESD bag
(2) Packed the LCD+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCD during transportation.
(5) Seal the carton by tape
Shipment:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2,Pls make sure the address is correct. We will ship to the address in the order. lf you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4,We will test each panel strictly before shipping and make very good package of it.
5,LCD will be sent by EMSIDHLUPSI according to the place or customer choice.
EMS:15-30 business days
DHLUPS 7-15 business days
AIR MAILS LIKE HK POST,CHINA POST, SWEDEN POST 30-45 business days
FAQ:
Q: Can you give me a discount if I need a large quantity of LQ084S3DG01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LQ084S3DG01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LQ084S3DG01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of LQ084S3DG01 ?
A: We accept T/T , Paypal , western union .
