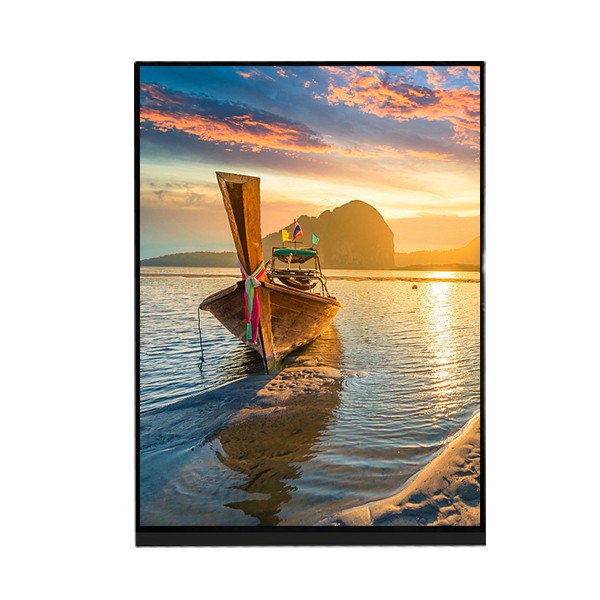

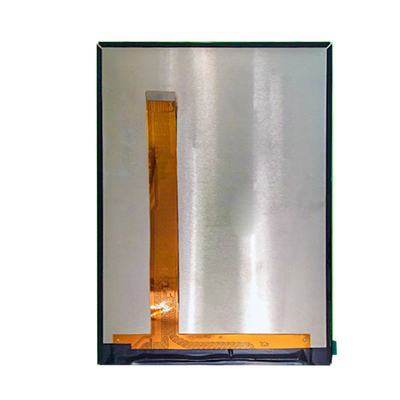

7.9 Inch 1536×2048 LCD Screen Display Panel LQ079L1SX01 For IPad Mini 2 3
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ079L1SX01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ079L1SX01 | Diagonal Size: | 7.9 Inch |
|---|---|---|---|
| Pixel Format: | 1536(RGB)×2048 [QXGA] 325PPI | Active Area: | 119.808(H)×159.744(V) Mm |
| Outline Dim.: | 125.55(H)×171.3(V) ×3.15(D) Mm | Light Source: | WLED [6S4P] , W/O Driver |
| Weight: | 65.0g (Typ.) | Designed For: | Pad & Tablet / 3D Printer |
| High Light: | 7.9 Inch LCD Screen Display Panel,QXGA LCD Screen Display Panel,sharp lcd screen LQ079L1SX01 |
||
Product Description
7.9 Inch 1536×2048 LQ079L1SX01 sharp LCD For iPad Mini 2 3 Matrix Screen LCD Display Repair Parts
Product details :
| SHARP LCD SCREEN LQ079L1SX01 | |
| manufacturer | SHARP |
| Model Name | LQ079L1SX01 |
| screen size | 7.9inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1536(RGB)×2048, QXGA, 325PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 119.808(H)×159.744(V) mm |
| physical area | 125.55(H)×171.3(V) ×3.15(D) mm |
| Contrast | Matte,Hard coating (2H) |
| Display | 460 cd/m² (Typ.) |
| contrast | 1000:1 (Typ.) (Transmission) |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| display mode | TN, Normally White, Transmissive |
| Number of color | 16.7M , 70% NTSC |
| Reaction time | 35 (Typ.)(Tr+Td) ms |
| Backlight type | 6S4P WLED, 50K hours, |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Panel weight | 65.0g (Typ.) |
| Signal | MIPI (2 ch, 4 data lanes) , 50 pins , terminal |
| drive voltage | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
| working | Storage temperature: -30 ~ 80 °C Operating temperature: -30 ~ 80 °C |
| 7.9 Inch 1536×2048 LQ079L1SX01 sharp LCD For iPad Mini 2 3 Matrix Screen LCD Display Repair Parts | |
1, Original guarantee;
2, Competitive prices;
3, RoHS Compliant
4, Stable supply
5, Any question will be reply in 24 hours
Kindly Reminder :
1.If the number of the need for more, please contact us, we will help you to arrange more quantity
2.we ship it by DHL /Fedex /UPS /EMS to all the customer,it arrive you in 3-4 days,and some country may be need to pay some duty fees, It depend on the receiver’s country policy.
3.If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day.
4.we warranty our products for you.
Payment:
we usually use T/T (Bank wire transfer).
L/C(Letter of Credit) at sight
Western Union,PayPal,Escrow etc...
Shipping and Package :
Shipping :
After-sales Service: When order complete,an email will be sent out to confirm the value and shipment methods.Then the shipment tracking number will be shared with email as always.100% strict inspection and test before shipment. Replace in one week once original defective goods found on arrival.Enjoy 1 year free replacement warranty.
Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
FAQ:
Q: If I place order now,when will you ship the goods of LQ079L1SX01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LQ079L1SX01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of LQ079L1SX01 ?
A: Of course!If you make a large order, we will give you a discount.
