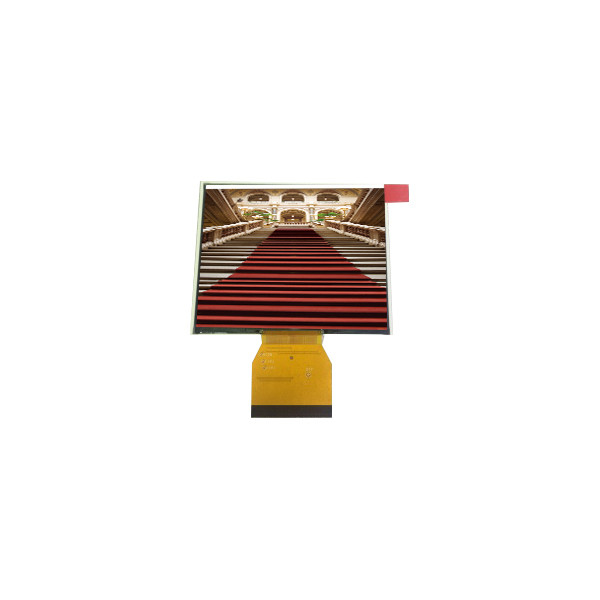

5.5 Inch 720*1280 LCD Display Screen TM055JYSP08 LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM055JYSP08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM055JYSP08 | Screen Size: | 5.5" |
|---|---|---|---|
| Pixel Number: | 720(RGB)×1280, WXGA 268PPI | Active Area(mm): | 68.04(W)×120.96(H) Mm |
| Outline(mm): | 70.84(W)×127.66(H)×0.4(D) Mm | Response: | 25 (Typ.)(Tr+Td) |
| Operating Mode: | Normally Black, Transmissive | Used For: | Mobile Phone |
| Treatment: | Without Polarizer | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Highlight: | WQVGA LCD display screen,480x272 LCD Display Screen,LQ043T1DG01 LCD module |
||
Product Description
5.5 Inch 720*1280 LCD Display Screen TM055JYSP08 LCD Module
TM055JYSP08 Product details :
| Brand | TIANMA |
| Model P/N | TM055JYSP08 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1280, WXGA 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.84(W)×127.66(H)×0.4(D) mm |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Plate Thickness | 0.20+0.20 mm |
| Support Color | 16.7M 74% NTSC |
| Weight | TBD |
| Frame Rate | - |
| Treatment | Without Polarizer |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | Normally Black, Transmissive |
| Transmittance | 3.45% (Typ.)(with Polarizer) |
| Light Source | No B/L |
| Designed For | Mobile Phone |
| Touch Panel | Without |
| D-IC Detail | COG Suggest HX8394A, HX8394D, NT35521, NT35521S, OTM1283A,OTM1284A, ILI9881, R61318, OTM1284A, ILI9881, R61318, SSD2077 |
| Environment | Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
TM055JYSP08 100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 1.5-88 inches is between the various industrial screen, Theya are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We are saleing TFT LCD module for the PDA,GPS,game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
TM055JYSP08 Payment Opinions:
1. T/T (Wire Transfer)
2. Western Union
3. Moneygram
4. Paypal
TM055JYSP08 Shipping and Package :
TM055JYSP08 Shipping & Delivery term:
1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.
2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).
3. Regarding the declared value on the package for customs clearance,we are pleased to follow your wishes, just feel free to inform us when ordering.
4. Any import fees or charges are the buyer's responsibility.
TM055JYSP08 FAQ:
Q: How long will I receive my goods TM055JYSP08 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of TM055JYSP08 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of TM055JYSP08 ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
