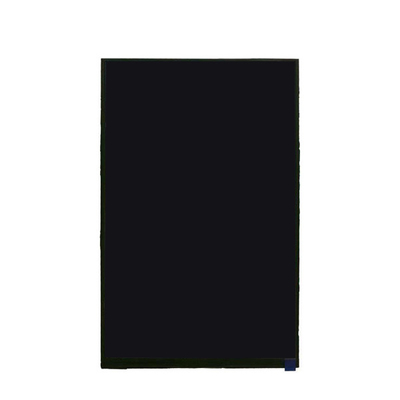

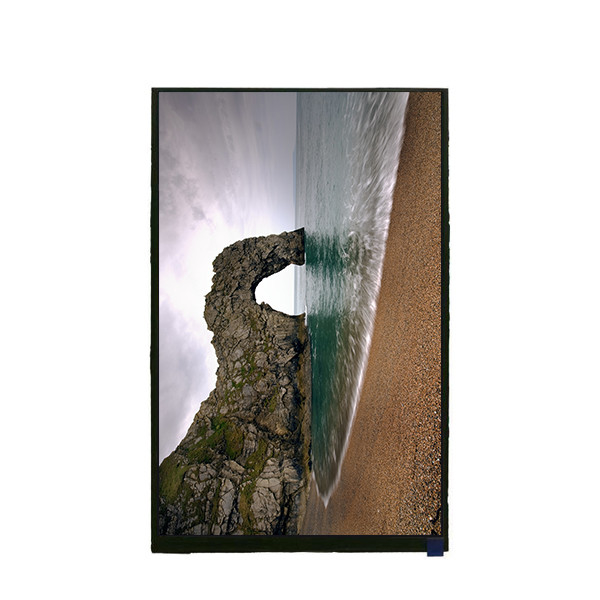

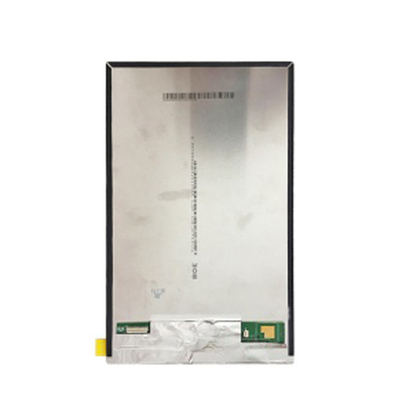

10.1 Inch 1200*1920 LCD Display Panel TV101WUM-NX0 For Pad Tablet
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV101WUM-NX0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TV101WUM-NX0 | Panel Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920, WUXGA 225PPI | Active Area: | 135.36(W)×216.576(H) Mm |
| Outline Size: | 141.5(H)×227.31(V)mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Response Time: | 30 (Typ.)(Tr+Td) | Application: | Pad & Tablet |
| Frame Rate: | 60Hz | ||
| Highlight: | RGB QVGA LCD display panel,LCD display panel LQ035Q3DG01 |
||
Product Description
10.1 Inch 1200*1920 LCD Display Panel TV101WUM-NX0 For Pad Tablet
Product details :
| Brand | BOE |
| Model P/N | TV101WUM-NX0 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×216.576(H) mm |
| Bezel Opening | - |
| Outline Dim. | 141.5(H)×227.31(V)mm |
| Treatment | Clear, Hard coating |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Support Color | 16.7M 100%sRGB |
| Light Source | WLED [8S4P], W/O Driver |
| Weight | 105g (Typ.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes), 45 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
Once you choose YONGS, you choose:
More factories, Better quality with warrantySpecific service of the products
Technics support,install guide if necessaryReturn policy
Reassuring long tem partner ship
Payment: T/T, 30% deposit, the balance is paid off before shipment
Westen union:
Delivery time: 3-7 days, from ShenZhenHongkong
Shipping and Package :
About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Refund & Replacement:
1.We provide 90 days warrantly.
2.If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3.If the items are defective, pls notify us within 3 days of delivery.
4.Any items must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the shipping cost incurred.
FAQ:
Q: Can You declare my order of TV101WUM-NX0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TV101WUM-NX0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of TV101WUM-NX0 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of TV101WUM-NX0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
