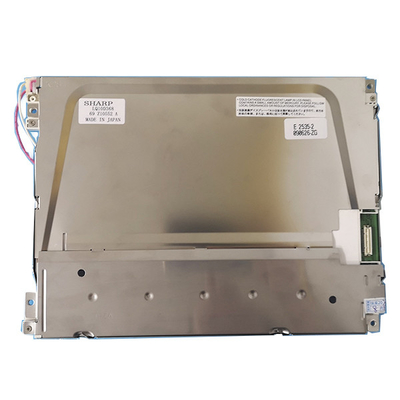

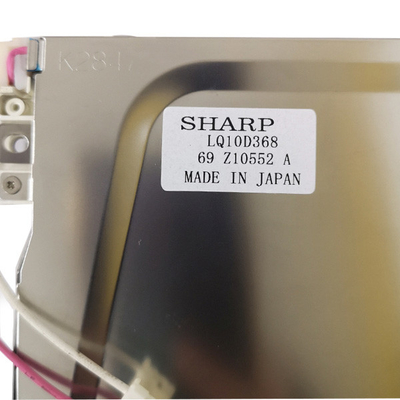

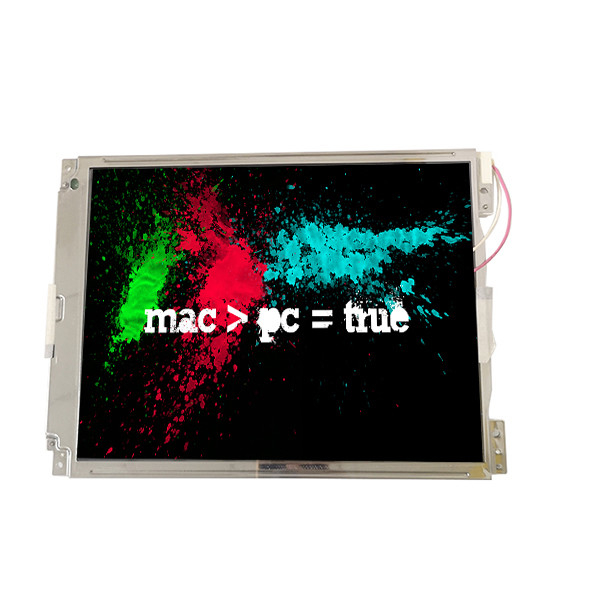

LQ10D36A LCD Panel Display 10.4 Inch RGB 640x480 Display Module Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ10D36A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ10D36A | Diagonal Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480 [VGA] 76PPI | Active Area: | 211.2(H)×158.4(V) Mm |
| Outline Dim.: | 246.5(H)×179.4(V) ×11(D) Mm | Bezel Area: | 214.6(H)×162.4(V) Mm |
| Weight: | 520g (Max.) | Designed For: | Industrial |
| High Light: | LQ10D36A LCD Panel Display,Antiglare LCD Panel Display |
||
Product Description
LQ10D36A LCD PANEL 10.4 inch 640(RGB)×480 display module screen
Product details :
| Sharp LCD Screen LQ10D36A | |
| Brand | Sharp |
| Model | LQ10D36A |
| Diagonal Size | 10.4 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 640(RGB)×480 [VGA] 76PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 211.2(H)×158.4(V) mm |
| Outline Dim. | 246.5(H)×179.4(V) ×11(D) mm |
| Bezel Area | 214.6(H)×162.4(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | CCFL [1 pcs] , 50K hours , W/O Driver |
| Weight | 520g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Power Supply | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C |
| LQ10D36A LCD PANEL 10.4 inch 640(RGB)×480 display module screen | |
Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds in China , you can get the most competitive price for real products.
Quality to be ensure:
All the panels are 100% original and brand new, no fake panels exists, so from Mingtu you can enjoy the real panels directly from original factory.
Original package and Seal for batch orders, all the products are in original package from original factory directly.
Shipping and Package :
About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
After-Sale service:
Mingtu will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here with three months.
FAQ:
Q: Can You declare my order of LQ10D36A to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of LQ10D36A ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of LQ10D36A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
