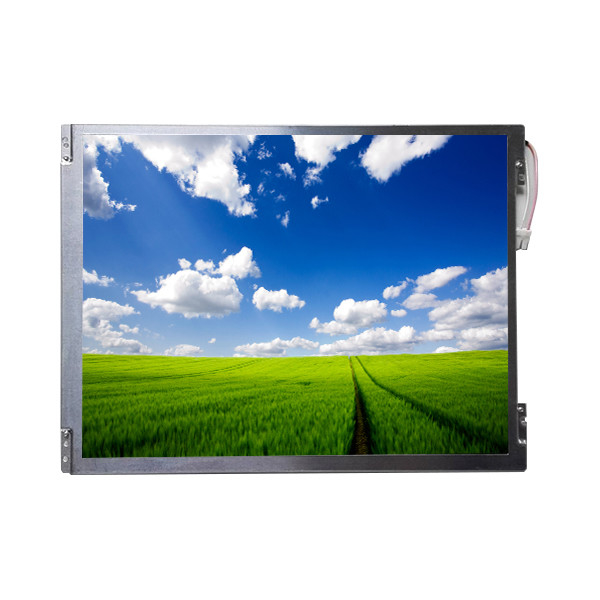

TS104SAALC01-00 TFT LCD Screen 10.4 Inch RGB 800x600 Interface LCD Panels Module
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TS104SAALC01-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TS104SAALC01-00 | Screen Size: | 10.4 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600 (SVGA) 96PPI | Active Area(mm): | 211.2 × 158.4 (H×V) |
| Outline(mm): | 236 × 176.9 × 5.9 (H×V×D) | Bezel Area(mm): | 215.0 × 162.0 (H×V) |
| Mass: | 288g (Typ.) | Used For: | Industrial |
| High Light: | TS104SAALC01-00 TFT LCD screen,TFT LCD screen 800x600,RGB lcd panels module |
||
Product Description
TS104SAALC01-00 TFT LCD Factory 10.4 inch tft screen resolution 800(RGB)×600 interface lcd panels module
Product details :

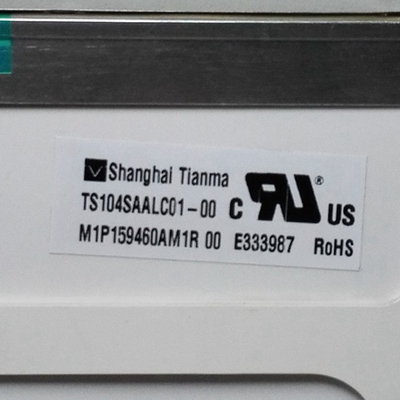

| TIANMA LCD SCREEN TS104SAALC01-00 | |
| manufacturer | TIANMA |
| Model Name | TS104SAALC01-00 |
| screen size | 10.4 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×600 [SVGA] 96PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 211.2(H)×158.4(V) mm |
| physical dimension | 236(H)×176.9(V) ×5.9(D) mm |
| Visual size | 215.0(H)×162.0(V) mm |
| surface treatment | Antiglare, Hard coating (3H) |
| Brightness | 230 cd/m² (Typ.) |
| Contrast | 400:1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 70/70/60/70 (Typ.)(CR≥10) |
| Responding time | 10 (Typ.)(TTr+Td) |
| Number of color | 262K 50% NTSC |
| Backlight type | CCFL [1 pcs] , W/O Driver |
| Panel weight | 288g (Typ.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| TS104SAALC01-00 TFT LCD Factory 10.4 inch tft screen resolution 800(RGB)×600 interface lcd panels module | |
We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with speed and precision
Customer Service Policy
We are more than happy to answer any questions that you have, please contact with
Shipping and Package :
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
About Shipping:
1, Standard delivery and delivery via dedicated shipping lines.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
FAQ:
Q: Can You declare my order of TS104SAALC01-00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TS104SAALC01-00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of TS104SAALC01-00 ?
A: Of course!sample order is welcome !
Q: How to make payment of TS104SAALC01-00 ?
A: We accept T/T , Paypal , western union .
