15.6 Inch TFT LCD Display TM156VDSG17 LVDS 30 Pins Interface RGB 1920X1080 For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM156VDSG17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM156VDSG17 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 363.8 × 215.9 × 6.8 (H×V×D) | Bezel Area(mm): | 347.55 × 196.75 (H×V) |
| Mass: | 610g (Typ.) | Used For: | Industrial |
| High Light: | LVDS TFT LCD Display,TM156VDSG17 TFT LCD Display |
||
Product Description

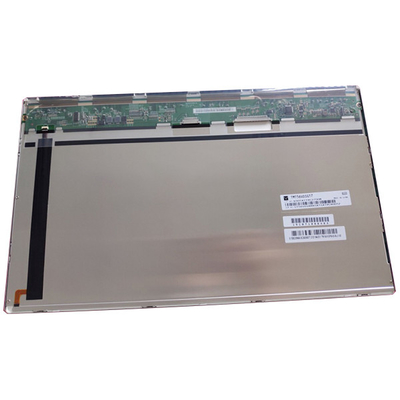

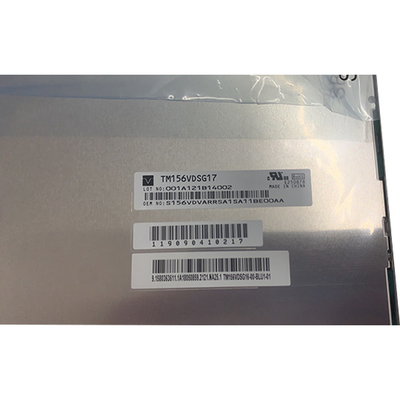

Tianma 15.6 inch TM156VDSG17 LVDS 30 Pins Interface 1920(RGB)×1080 TFT LCD Display for Industrial
Product details :
| TIANMA LCD SCREEN TM156VDSG17 | |
| manufacturer | TIANMA |
| Model Name | TM156VDSG17 |
| screen size | 15.6 inch |
| Screen type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 [FHD] 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 344.16(H)×193.59(V) mm |
| physical dimension | 363.8(H)×215.9(V) ×6.8(D) mm |
| Visual size | 347.55(H)×196.75(V) mm |
| surface treatment | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Best angle | Symmetry |
| Optical mode | SFT, Normally Black, Transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Responding time | 25 (Typ.)(Tr+Td) |
| Number of color | 16.7M 72% NTSC |
| Backlight type | WLED , 50K hours , With LED Driver |
| Panel weight | 610g (Typ.) |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| Tianma 15.6 inch TM156VDSG17 LVDS 30 Pins Interface 1920(RGB)×1080 TFT LCD Display for Industrial | |
Advantage:
1.Factory direct price
2.Good quality as original
3.On time delivery
4.Good communication sales team
Shipping and Package :
About Shipping:
1.We will test them strictly before shipping.
2.We will ship it within 3 working days after we get the order.
3.The delivery time normally will be 7 to 50 days, which will be different for different countries. You can choose Standard Shipping,It is faster than others.
Warranty and Return:
1.We offer warranty for all of our products.
2.Buyers bear the shipping cost for returning defective or non-defective item to us.
3.Return items should be in good condition same as we sent, not damaged.
4.Returned items are subject to approval by us, it should be in original box as we sent.
5.Physically damaged items received should be reported within 2 days.
6.All NON-Seller Mistake returns, there is 15% re-stocking fees and shipping and handling charges are NON-refundable. (E.g. you boughtwrong item)
Guarantee:
1.6 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with 1-month warranty.
2.Defective items MUST BE reported & returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is & give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
FAQ:
Q: Can You declare my order of TM156VDSG17 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TM156VDSG17 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of TM156VDSG17 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of TM156VDSG17 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
