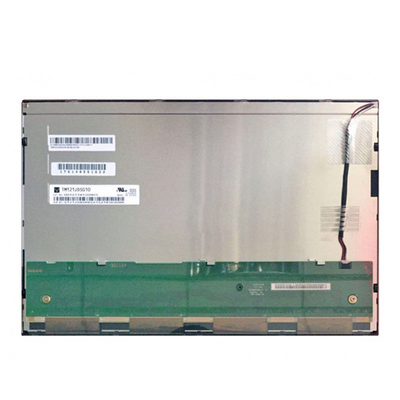

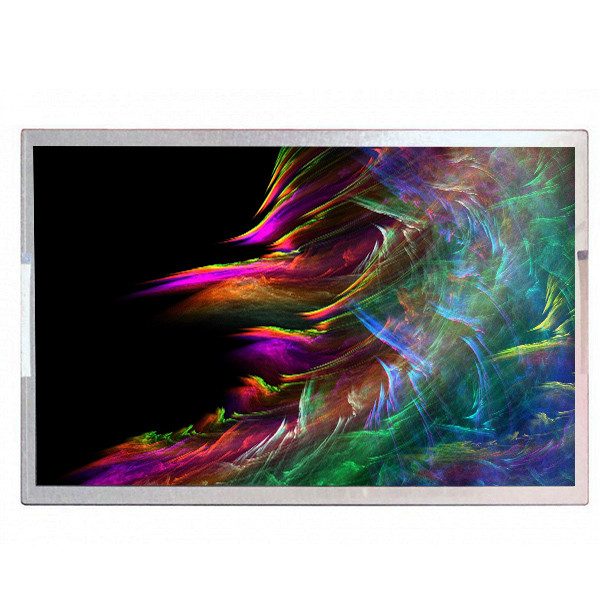

12.1 Inch Industrial LCD Panel Display TM121JDSG10 1280X800 IPS Display LVDS 30 Pins
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM121JDSG10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM121JDSG10 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 1280(RGB)×800 (WXGA) 124PPI | Active Area(mm): | 261.12 × 163.2 (H×V) |
| Outline(mm): | 278 × 184 × 10.4 (H×V×D) | Bezel Area(mm): | 262.12 × 164.2 (H×V) |
| Mass: | 440g (Typ.) | Used For: | Industrial |
| High Light: | 30 Pins Industrial LCD Panel Display,TM121JDSG10 IPS LCD Display,LVDS IPS LCD Display |
||
Product Description
12.1 inch Lcd Panel TM121JDSG10 1280*800 Resolution IPS Display LVDS 30 Pins For Industrial
Product details :
| TIANMA LCD SCREEN TM121JDSG10 | |
| Manufacturer | TIANMA |
| Model Name | TM121JDSG10 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 124PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 261.12 × 163.2 (H×V) |
| Outline(mm) | 278 × 184 × 10.4 (H×V×D) |
| Bezel Area(mm) | 262.12 × 164.2 (H×V) |
| Treatment | Antiglare |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 12/13 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 40% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 440g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 12.1 inch Lcd Panel TM121JDSG10 1280*800 Resolution IPS Display LVDS 30 Pins For Industrial | |
