Name: 10.4 Inch LVDS 20 Pin LED Display Module RGB 800X600 With Touch TM104SBH01
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: TM104SBH01
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM104SBH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

TM104SBH01

Diagonal Size:

10.4 Inch

Pixel Format:

800(RGB)×600 [SVGA] 96PPI

Active Area:

211.2(H)×158.4(V) Mm

Outline Dim.:

236(H)×176.9(V) ×7.6(D) Mm

Bezel Area:

214.2(H)×161.4(V) Mm

Weight:

412g

Designed For:

Industrial

Supply Ability:

100000 Unit/Units per Month

Highlight:

LVDS 20 Pin LED Display Module

TM104SBH01 LED Display Module

Product Description

Original 10.4 inch 800(RGB)×600 LVDS 20 Pin LED Display Module With Touch TM104SBH01

Product details :

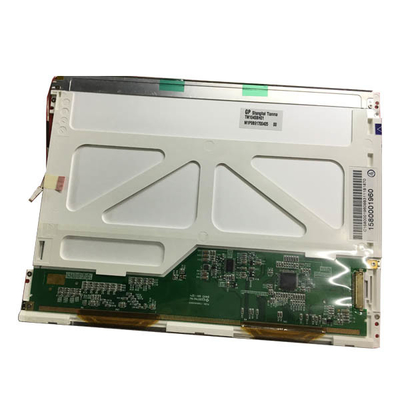

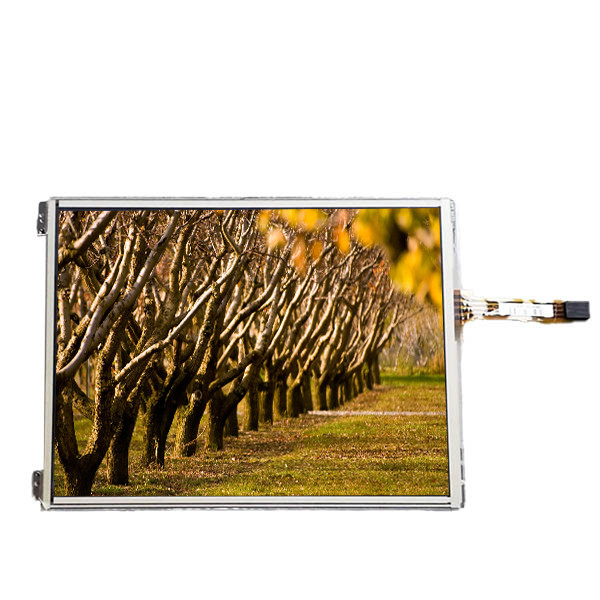

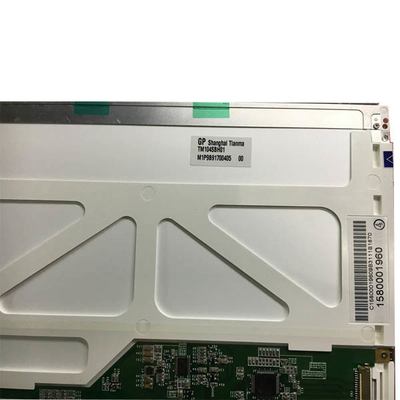

TIANMA LCD SCREEN TM104SBH01
Manufacturer	TIANMA
Model Name	TM104SBH01
Screen Size	10.4 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	800(RGB)×600 (SVGA) 96PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	211.2 × 158.4 (H×V)
Outline(mm)	236 × 176.9 × 7.6 (H×V×D)
Bezel Area(mm)	214.2 × 161.4 (H×V)
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 50% NTSC
Backlight	6S6P WLED , 20K hours , No Driver
Mass	412g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	4-wire Resistive Touch
Signal Type	LVDS (1 ch, 6-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Original 10.4 inch 800(RGB)×600 LVDS 20 Pin LED Display Module With Touch TM104SBH01

Notice:

1.This goods is only LCD Screen (Not complete GPS).

2.It's100% Original goods.

3.We will send items within 3-5 days after your payment .

4.Men made defects are not guaranteed.

Shipping and Package :

10.4 Inch LVDS 20 Pin LED Display Module RGB 800X600 With Touch TM104SBH01 0

About Shipping:

1.We ship all the goods with 1-3 days;

2.We used to ship to all customer by DHL, it take 3-4 days to arrive you.

3. We test good before shipping.

4. We guarantee for our goods.

Return & Warranty:

- If the product is defective or not working, please contact us immediately after receiving the product.We offer a 30days Money back or replacement.

- If prove that this product is defective or not working,Please return the product,We will resend a product for you.

- The returned item and all accessories must be in the original (unused) condition. Each item is pasted with a warranty label, please do not tear up the label.

FAQ:

Q: If I place order now,when will you ship the goods of TM104SBH01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of TM104SBH01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How to make payment of TM104SBH01 ?

A: We accept T/T , Paypal , western union .
