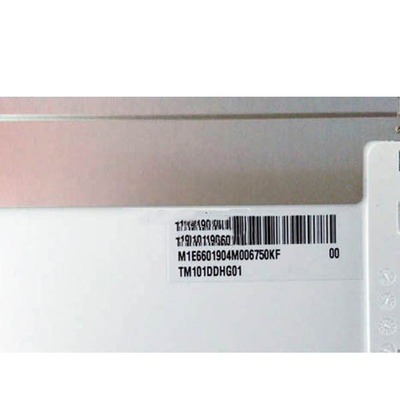

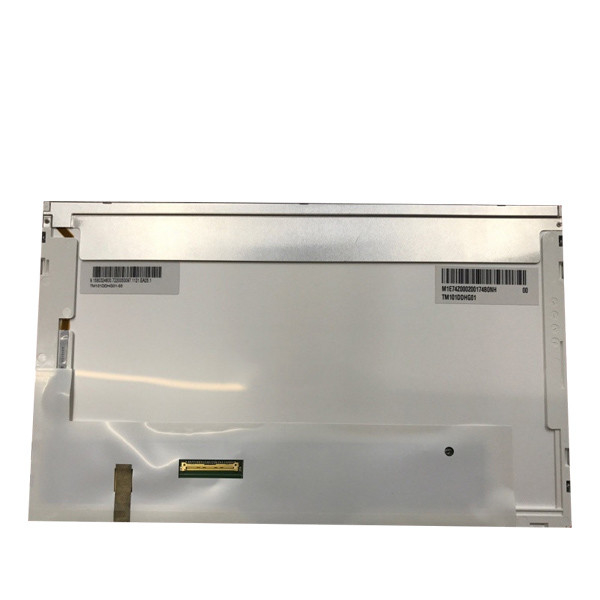

10.1 Inch TFT LCD Display TM101DDHG01-00 LVDS RGB 1024X600 For Industrial Medical
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM101DDHG01-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM101DDHG01-00 | Diagonal Size: | 10.1 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600 [WSVGA] 117PPI | Active Area: | 222.72(H)×125.28(V) Mm |
| Outline Dim.: | 235(H)×143(V) ×5.4(D) Mm | Bezel Area: | 225.52(H)×128.10(V) Mm |
| Weight: | 202g (Typ.) | Designed For: | Industrial / Automotive Display |
| High Light: | Medical TFT LCD Display,TM101DDHG01-00 TFT LCD Display |
||
Product Description
10.1 Inch Tm101ddhg01-00 Lvds 1024(Rgb)×600 Tft Lcd Display High Brightness For Industrial Medical Automotive
Product details :
| TIANMA LCD SCREEN TM101DDHG01-00 | |
| Manufacturer | TIANMA |
| Model Name | TM101DDHG01-00 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Outline(mm) | 235 × 143 × 5.4 (H×V×D) |
| Bezel Area(mm) | 225.52 × 128.10 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/75/80 (Typ.)(CR≥10) |
| Response | 7/9 (Typ.)(Tr/Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 47% NTSC |
| Backlight | WLED , 30K hours , With LED Driver |
| Mass | 202g (Typ.) |
| Used for | Industrial / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 10.1 inch TM101DDHG01-00 LVDS 1024(RGB)×600 TFT LCD Display High Brightness for Industrial Medical Automotive | |
LCD Parts is fragile, if install improperly, it won' t work, in order to protect your rights, following our suggestion !
1. Our screen is a Original Replacement parts for Garmin GPS ,it is In stock and with great quality, and has 100% tested well, when we shipped, you can see the tracking number in your order.
2. We will ship it with in 48 hours after you finishing the payment.
3. Our goods will ship with the Strong Packing , Antistatic bags +Bubble bag +Carton Box.
4. Before you confirming the screen can work perfectly, please do not use the adhesive to install our screen to your equipment, if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
5. Please test the LCD Screen before installing, take a video when test it, make sure it work good, then install. If LCD screen can't work, please provide us this video, we will provide you solution.
6.Please power off your device/ pull off the battery before you test or install the LCD screen! Other wise it won't work!
7.LCD screen is fragile, very easy to break, please be careful when you test or install !
Shipping and Package :
100% tested before shipping!
We are the OEM Seller and distriputer for Industrial LCD and Module. We supply 1.5 inch-88.0 inch LCD, They areare applicable to textile machines,medical machines,industrial automation and industrial control.
FAQ:
Q: Can You declare my order of TM101DDHG01-00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of TM101DDHG01-00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TM101DDHG01-00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
