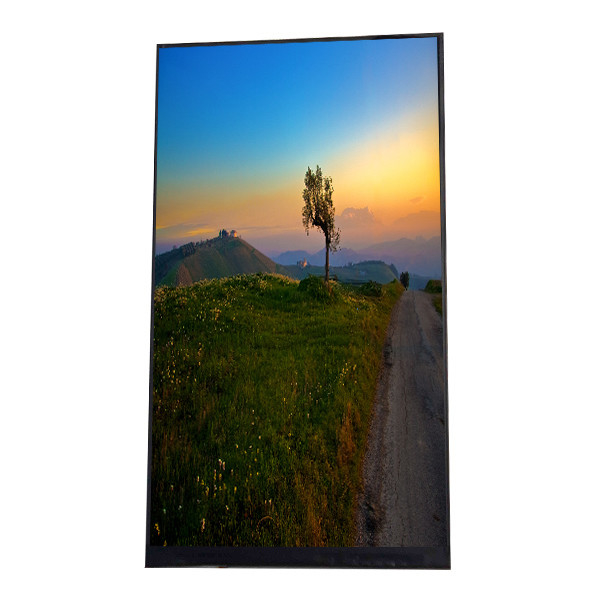

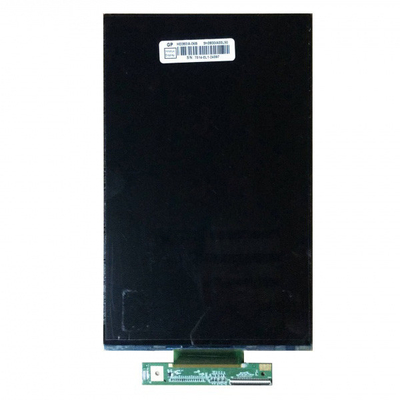

8.0 Inch 1280x800 TFT LCD Screen Module HE080IA-06B Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | HE080IA-06B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HE080IA-06B | Diagonal Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×1280 (WXGA) 188PPI | Active Area: | 107.64 × 172.224 (H×V) |
| Outline Dim.: | 112.64 × 181.8 × 1.07 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 16.7M 60% NTSC | Designed For: | Pad & Tablet |
| High Light: | 8.0 inch TFT LCD display,HE080IA-06B TFT LCD screen module,automotive display TFT LCD screen module |
||
Product Description
8.0 inch 1280*800 HE080IA-06B tft lcd display panel tft lcd screen module automotive display
Product details :
| Innolux LCD SCREEN HE080IA-06B | |
| Manufacturer | Innolux |
| Model Name | HE080IA-06B |
| Screen Size | 8.0 inch |
| Screen Type | CELL , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×1280 (WXGA) 188PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 107.64 × 172.224 (H×V) |
| Outline(mm) | 112.64 × 181.8 × 1.07 (H×V×D) |
| Treatment | Hard coating |
| Luminance | 0 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 4.7% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 60% NTSC |
| Backlight | No B/L , No Driver |
| Mass | 60.0g (Typ.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COG 1 source chips |
| Signal Type | MIPI (4 data lanes) , 40 pins Connector |
| Voltage Supply | 1.8/5.8/-5.8V (Typ.)(VDDIN/AVDD/AVEE) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C |
| 8.0 inch 1280*800 HE080IA-06B tft lcd display panel tft lcd screen module automotive display | |
Notice:
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. Please kindly leave us your exact full name (especially buyer from RU ) & Telephone No. , when you filling your informations as buyer, so that the courier can delivery the your items timely & easily.
3.When you got the package ,please make a video that when you open the package. (If there is any damage in transit, you can send this video as evidence to the dispute.)
Payment:
We accept Escrow ,Credit Card , Paypal,and so on
Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the sample order of AUO HE080IA-06B?
A: Yes, Welcome !
Q: How long the warranty of HE080IA-06B?
A: 90 days .
Q: What happen if the HE080IA-06B I received can't work ?
A: Our HE080IA-06B was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
