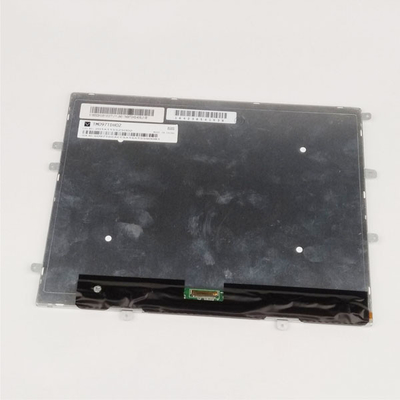

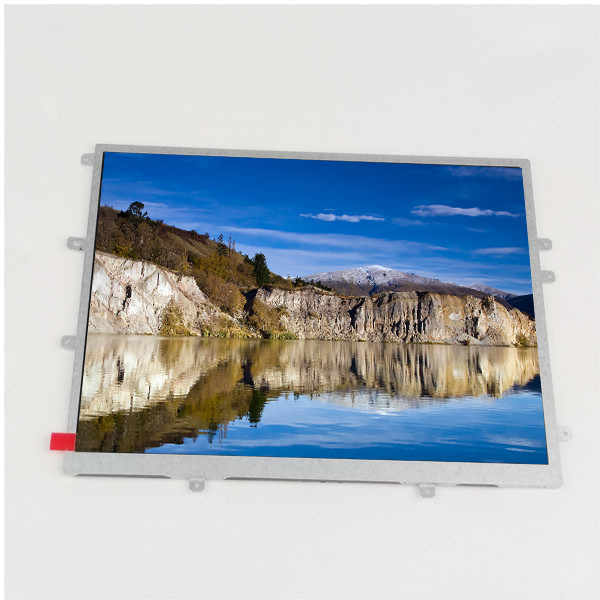

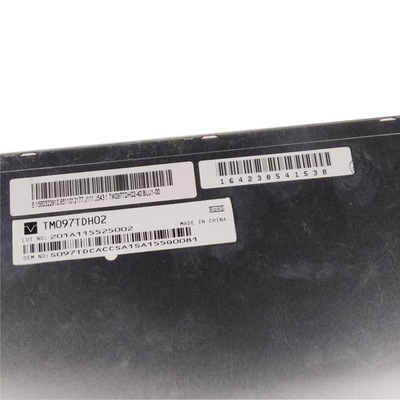

Tianma 9.7 Inch TFT LCD Panel TM097TDH02 LVDS LCD Screen With RGB 1024x768

All Category

Floor Standing Digital Signage

Tianma 9.7 Inch TFT LCD Panel TM097TDH02 LVDS LCD Screen With RGB 1024x768

Brand Name:	TIANMA
Model Number:	TM097TDH02
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model:

TM097TDH02

Diagonal Size:

9.7 Inch

Pixel Format:

1024(RGB)×768 [XGA] 132PPI

Active Area:

196.608(H)×147.456(V) Mm

Outline Dim.:

210.21(H)×166.3(V) ×5.85(D) Mm

Bezel Area:

200.91(H)×152.26(V) Mm

Weight:

200g (Typ.)

Designed For:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Highlight:

9.7 inch TFT LCD Panel

TM097TDH02 TFT LCD Panel

Tianma LVDS LCD Screen

Product Description

Tianma 9.7 inch TFT LCD Panel TM097TDH02 with 1024(RGB)×768 LVDS LCD Screen

Product details :

TIANMA LCD SCREEN TM097TDH02
Manufacturer	TIANMA
Model Name	TM097TDH02
Screen Size	9.7 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	1024(RGB)×768 (XGA) 132PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	196.608 × 147.456 (H×V)
Outline(mm)	210.21 × 166.3 × 5.85 (H×V×D)
Bezel Area(mm)	200.91 × 152.26 (H×V)
Treatment	Clear
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/60/70/70 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Good View at	3 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 50% NTSC
Backlight	6S6P WLED , 30K hours , No Driver
Mass	200g (Typ.)
Used for	Pad & Tablet
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6-bit) , 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Tianma 9.7 inch TFT LCD Panel TM097TDH02 with 1024(RGB)×768 LVDS LCD Screen

Notice:

1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.

2. Please kindly leave us your exact full name (especially buyer from RU ) & Telephone No. , when you filling your informations as buyer, so that the courier can delivery the your items timely & easily.

3.When you got the package ,please make a video that when you open the package. (If there is any damage in transit, you can send this video as evidence to the dispute.)

Payment:

We accept Escrow ,Credit Card , Paypal,and so on

Shipping and Package :

Tianma 9.7 Inch TFT LCD Panel TM097TDH02 LVDS LCD Screen With RGB 1024x768 0

Shipping:

We Ship to Worldwide

In order to ensure that customers can normally install the use of our products

Before shipment, we will detect this product

Most items will ship within 2-4business days on payment received.

Please provide your correct and detailed address and your phone number to ensure the delivery on time. We are not responsible for wrong or undeliverable address.

If you need to change your address, please contact us before you pay.

Our prices do not include any tariffs or other taxes;

If you have any questions please feel free to contact me

Warranty and Return:

1. We offer warranty for all of our products.

2. Buyers bear the shipping cost for returning defective or non-defective item to us.

3. Return items should be in good condition same as we sent, not damaged.

4. Returned items are subject to approval by us, it should be in original box as we sent.

5. Physically damaged items received should be reported within 2 days.

6. All NON-Seller Mistake returns, there is 15% re-stocking fees and shipping and handling charges are NON-refundable. (E.g. you boughtwrong item)

FAQ:

Q: Can You declare my order of TM097TDH02 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of TM097TDH02 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of TM097TDH02 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: If I place order now,when will you ship the goods of TM097TDH02 ?

A: The order will be shipped within 2-3 working days after received your payment.
