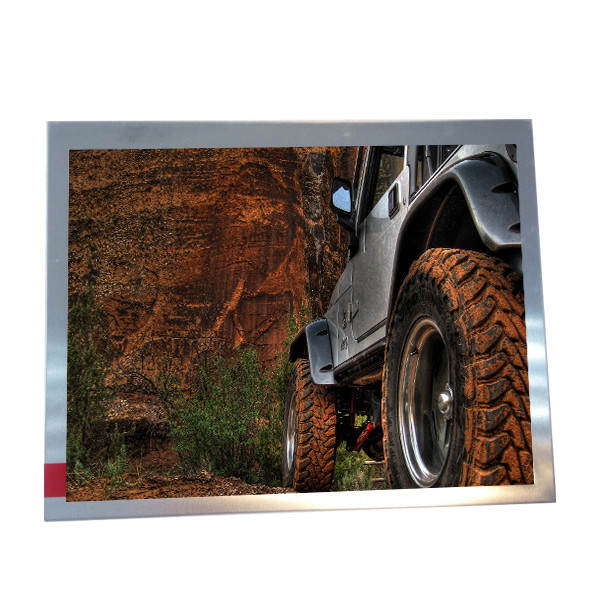

TM090DDSG01 Industrial LCD Screen Tianma 9.0 Inch RGB 1024x600
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM090DDSG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM090DDSG01 | Diagonal Size: | 9.0 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×600 [WSVGA] 132PPI | Active Area: | 196.608(H)×114.15(V) Mm |
| Outline Dim.: | 211.1(H)×126.5(V) ×6(D) Mm | Bezel Area: | 200.01(H)×117.55(V) Mm |
| Weight: | TBD | Designed For: | Industrial |
| High Light: | TM090DDSG01 industrial LCD screen,Tianma industrial LCD screen |
||
Product Description
Original TM090DDSG01 Tianma 9.0 inch 1024(RGB)×600 industrial LCD screen
Product details :
| TIANMA LCD SCREEN TM090DDSG01 | |
| manufacturer | TIANMA |
| Model Name | TM090DDSG01 |
| screen size | 9.0 inch |
| Screen type | LCM , a-Si TFT-LCD |
| Resolution | 1024(RGB)×600 (WSVGA) 132PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 196.608 × 114.15 (H×V) |
| physical dimension | 211.1 × 126.5 × 6 (H×V×D) |
| Visual size | 200.01 × 117.55 (H×V) |
| surface treatment | Antiglare |
| Brightness | 500 cd/m² (Typ.) |
| Contrast | 800 : 1 (Typ.) (TM) |
| Best angle | 12 o'clock |
| Optical mode | TN, Normally White, Transmissive |
| Viewing angle | 70/70/50/70 (Typ.)(CR≥10) |
| Responding time | 25 (Typ.)(Tr+Td) ms |
| Number of color | 262K/16.7M 50% NTSC |
| Backlight type | 3S10P WLED , 20K hours , No Driver |
| Panel weight | TBD |
| Apply to | Industrial |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Supply voltage | 3.3/10.6/23/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Maximum rating | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Original TM090DDSG01 Tianma 9.0 inch 1024(RGB)×600 industrial LCD screen | |
