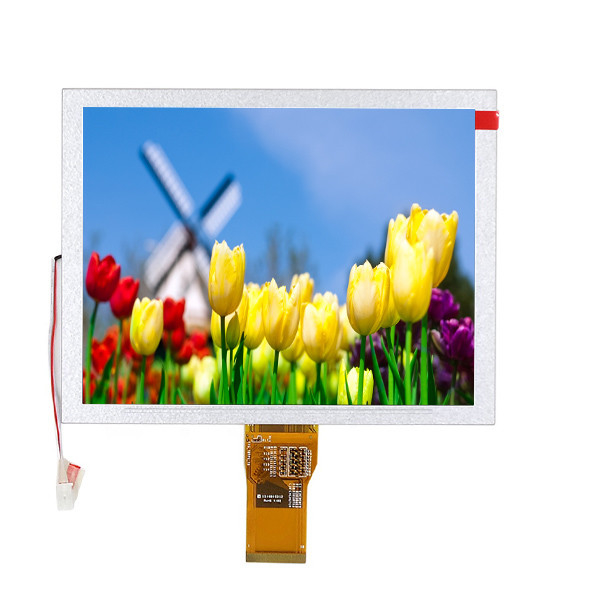

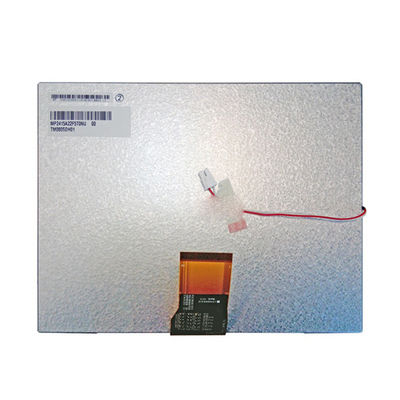

8.0 Inch LCD Screen Display TM080SDH01 RGB 800x600 TFT LCD LCM Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM080SDH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM080SDH01 | Diagonal Size: | 8.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×600 [SVGA] 125PPI | Active Area: | 162(H)×121.5(V) Mm |
| Outline Dim.: | 183(H)×141(V) ×5.9(D) Mm | Bezel Area: | 164.8(H)×124.3(V) Mm |
| Weight: | 250g | Designed For: | Industrial |
| High Light: | RGB 800x600 LCD Screen Display,TM080SDH01 LCD Screen Display,Industrial TFT LCD Display |
||
Product Description
8.0 inch screen TM080SDH01 800(RGB)×600 lcd screen display TFT-LCD LCM lcd panel
Product details :
| TIANMA LCD SCREEN TM080SDH01 | |
| Manufacturer | TIANMA |
| Model Name | TM080SDH01 |
| Screen Size | 8.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 800(RGB)×600 (SVGA) 125PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 162 × 121.5 (H×V) |
| Outline(mm) | 183 × 141 × 5.9 (H×V×D) |
| Bezel Area(mm) | 164.8 × 124.3 (H×V) |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 50% NTSC |
| Backlight | 3S9P WLED , 20K hours , No Driver |
| Mass | 250 g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Voltage Supply | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 8.0 inch screen TM080SDH01 800(RGB)×600 lcd screen display TFT-LCD LCM lcd panel | |
Quality:
We have a wealth of experience in Tablet PC LCD Screen maintenance in China.All the Replacement Screen will be checked and tested carefully by our experienced quality control team before shipment.100% work well.
Warm Tip:
1)Every products will be tested before delivery, with special instruments or main boards to ensure working.
2)All the products ,3 months warranty ,strictly test before ship,Please inform us WITHIN 3 DAYS after receiving the parcel if you are dissatisfied with products (Real picture and other evidence must be given),then we will offer replacement /refund if the products are not as .
3)If the item is your prossession more than 7 days ,it is considered used /second –hand ,we will Only offer replacement service after we get your return item .
Shipping and Package :
Packaging:
the parcel will be packed well with bubble bag + strong box.Do not worry.
Shipping:
We try our best to ship out same day for payment cleared before 17.00 PM (Beijing Time),otherwise we will ship on next working day.Order placed on weekend or holiday will be shipped on Monday or next working day.when we shipped, you can see the tracking number in your order.
FAQ:
Q: If I place order now,when will you ship the goods of TM080SDH01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of TM080SDH01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods TM080SDH01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
