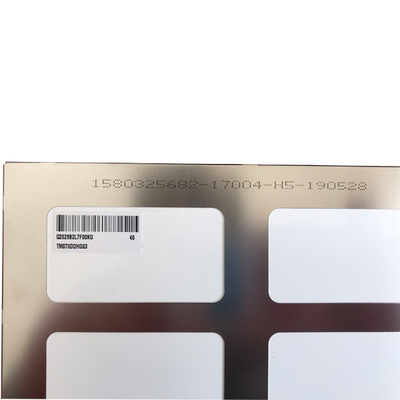

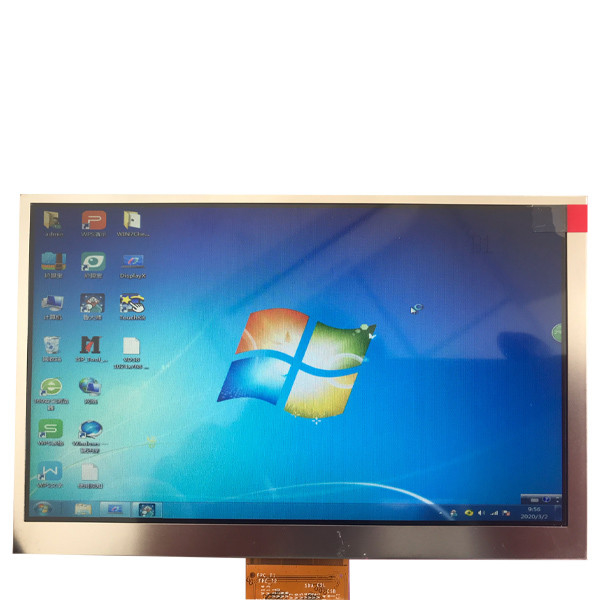

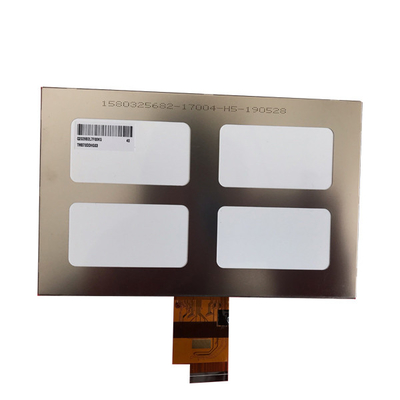

TM070DDHG03-40 WLED LCD Monitor RGB 1024X600 7.0 Inch LVDS LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070DDHG03-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM070DDHG03-40 | Screen Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×600 (WSVGA) 169PPI | Active Area(mm): | 153.6 × 90 (H×V) |
| Outline(mm): | 165.75 × 105.39 × 3.7 (H×V×D) | Bezel Area(mm): | 156.2 × 92.6 (H×V) |
| Mass: | 111.7g (Typ.) | Used For: | Industrial |
| High Light: | TM070DDHG03-40 WLED LCD monitor,LVDS WLED LCD monitor,7.0 Inch LVDS LCD Display |
||
Product Description
TM070DDHG03-40 1024(RGB)×600 WLED lcd display 7.0 inch LVDS LCD monitor
Product details :
| TIANMA LCD SCREEN TM070DDHG03-40 | |
| Manufacturer | TIANMA |
| Model Name | TM070DDHG03-40 |
| Screen Size | 7.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 169PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 153.6 × 90 (H×V) |
| Outline(mm) | 165.75 × 105.39 × 3.7 (H×V×D) |
| Bezel Area(mm) | 156.2 × 92.6 (H×V) |
| Treatment | Antiglare |
| Luminance | 320 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 51% NTSC |
| Backlight | 3S6P WLED , 15K hours , No Driver |
| Mass | 111.7g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| Voltage Supply | 3.3/10.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| TM070DDHG03-40 1024(RGB)×600 WLED lcd display 7.0 inch LVDS LCD monitor | |
Special Notice:
Please test normal before installation.
As the touch screen may has different connector cable for the same model.
Please open your screen to check if your cable is the same as the picture.
Different production batches. Product part number and LOGO may not be consistent with the picture. We only guarantee compatibility
Shipping and Package :
Packaging:
We usually pack our products by anti-static bags, bubble bags, good quality cartons. And we promise here if you get it bad because of poor package, it will be 100% our responsibility, and we will take care of that. And as it proved for our reponsibility, you will get 100% your money back, or free replacement.
Shipping:
1. WORLDWIDE SHIPPING. (Except some countries & APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are the actual item,please kindly check your items carefully before order.
5. SERVICE TRANSIT TIME is provided by the carrier & excludes weekends & holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 50 days from payment, please contact us. We will track the shipment & get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status & time differences, we will choose to ship your item from our first available warehouse for fast delivery.
FAQ:
Q: If I place order now,when will you ship the goods of TM070DDHG03-40 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of TM070DDHG03-40 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of TM070DDHG03-40 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
