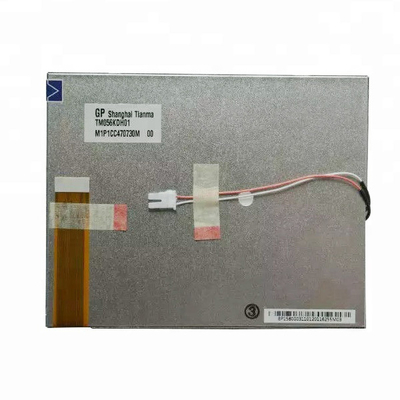

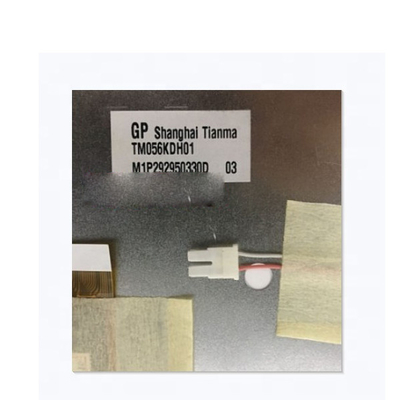

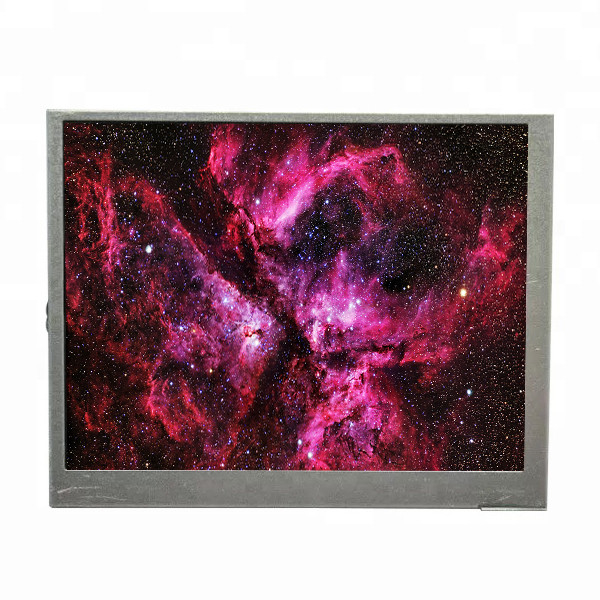

TM056KDH01 LCD Panel Display 5.6 Inch RGB 320X234 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM056KDH01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | TM056KDH01 | Diagonal Size: | 5.6 Inch |
|---|---|---|---|
| Pixel Format: | 320(RGB)×234 71PPI | Active Area: | 113.28(H)×84.708(V) Mm |
| Outline Dim.: | 126.5(H)×100(V) Mm | Bezel Area: | 116.08(H)×87.51(V) Mm |
| Weight: | 123g (Typ.) | Application: | Industrial / Digital Photo Frame / Portable DVD Player / Video Door Phone |
| High Light: | TM056KDH01 LCD Panel Display,5.6 inch LCD Panel Display |
||
Product Description
5.6 inch 320(RGB)×234 LCD screen TM056KDH01 display lcd panel
Product details :
| TIANMA LCD SCREEN TM056KDH01 | |
| Manufacturer | TIANMA |
| Model Name | TM056KDH01 |
| Screen Size | 5.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×234 71PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 113.28 × 84.708 (H×V) |
| Outline(mm) | 126.5 × 100 (H×V×D) |
| Bezel Area(mm) | 116.08 × 87.51 (H×V) |
| Treatment | Antiglare |
| Luminance | 200cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color 50% NTSC |
| Backlight | 2S7P WLED , No Driver |
| Mass | 123g (Typ.) |
| Used for | Industrial / Digital Photo Frame / Portable DVD Player / Video Door Phone |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB , 26 pins FPC |
| Voltage Supply | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 5.6 inch 320(RGB)×234 LCD screen TM056KDH01 display lcd panel | |
Payment:
We accept Escrow ,Credit Card , Paypal,and so on
Shipping and Package :
Packing:
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid geting broken in the transport .
Shipping:
We Ship to Worldwide
In order to ensure that customers can normally install the use of our products
Before shipment, we will detect this product
Most items will ship within 2-4business days on payment received.
Please provide your correct and detailed address and your phone number to ensure the delivery on time. We are not responsible for wrong or undeliverable address.
If you need to change your address, please contact us before you pay.
Our prices do not include any tariffs or other taxes;
If you have any questions please feel free to contact me
Warranty & Return:
Thanks for your great support and trust to our products, we have very strict quality control system, so we have extremely low defect rate.
However, if you want to return the item, please follow these instructions:
1. As a responsible seller, we will try our best to solve every problem.
Please Email us before you are going to leave us a neutral / neg. feedback
2. International transport can sometimes cause product damage or product failure
If you find such a problem, resolved through our emails or phone calls; we will be here for you all the time!.
I will help you solve the problem as soon as possible.
3. We stand behind all of our products with a 30-day,money-back or exchange guarantee.
FAQ:
Q: Can You declare my order of TM056KDH01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: If I place order now,when will you ship the goods of TM056KDH01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of TM056KDH01 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
