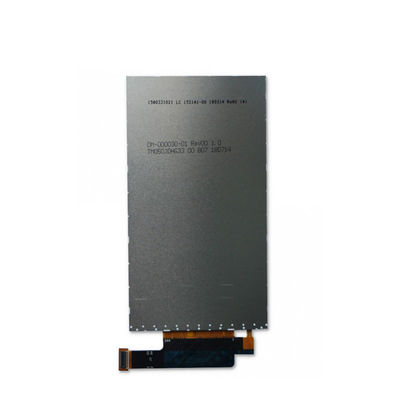

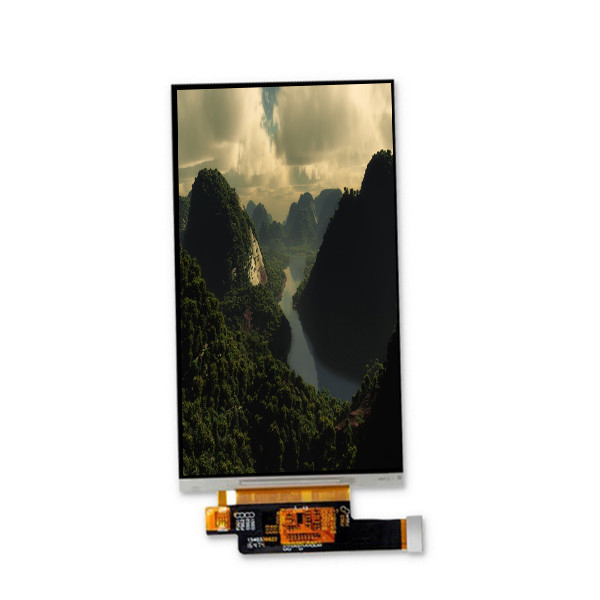

TM050JDHG33 LCD Module Replacement With Touch Screen For Zebra Motorola TC51 TC510K TC56
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM050JDHG33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | TM050JDHG33 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 720(RGB)×1280, WXGA, 294PPI | Display Area: | 62.1(W)×110.4(H) Mm |
| Outline Size: | 65.4(W)×118.9(H) ×1.8(D) Mm | Lamp Type: | 6S2P WLED , 20K Hours , Without Driver |
| Panel Weight: | TBD | Application: | Mobile Phone / Handheld & PDA |
| High Light: | TM050JDHG33 LCD Module Replacement,MIPI LCD Module Replacement |
||
Product Description
New original TM050JDHG33 LCD Module with Touch Screen Replacement for Zebra Motorola TC51 TC510K TC56
Product details :
| TIANMA LCD SCREEN TM050JDHG33 | |
| Manufacturer | TIANMA |
| Model Name | TM050JDHG33 |
| Screen Size | 5.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 720(RGB)×1280 (WXGA) 294PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 62.1 × 110.4 (H×V) |
| Outline(mm) | 65.4 × 118.9 × 1.8 (H×V×D) |
| Treatment | Clear, Hard coating |
| Luminance | 600cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Backlight | 6S2P WLED , 20K hours , No Driver |
| Mass | TBD |
| Used for | Mobile Phone / Handheld & PDA |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) , Connector 34 pins |
| Voltage Supply | 1.8/2.8V (Typ.)(VDDIO/VCC) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| New original TM050JDHG33 LCD Module with Touch Screen Replacement for Zebra Motorola TC51 TC510K TC56 | |
Useful news:
Please confirm that the specific parts of your machine are faulty before purchasing the corresponding parts. If you cannot confirm the specific parts failure, please do not purchase it.thank you very much!
Some of the internal parts are detached from the machine, it is not full new, but has been tested and 100% working perfect. Please use it with confidence. If you do not agree please do not buy!thank you!
Payment:
We accept Escrow ,Credit Card , Paypal,and so on
Shipping and Package :
About the transportation:
We pay the freight according to you to use the fastest delivery service, in 7 to 15 days to reach most of Europe, North America and Asia. In other countries/regions for 30 to 45 days. Provide express service (DHL/TNT/ARAMEX/UPS/FEDEX)
Reminder:
Russian Friend Pay Attention Please !!!
Please fill in receiver's full name in the order due to new policy of Russian customs,
otherwise you probably won't receive package finally .
We are not responsible for nondelivery caused by that client don't provide
enough information when making order.
1.product information comes from internet,but our pictures are real,we ship your order same as our picture,so please compare our pictures with your desired product,in order to avoid trubble,As return postal costs for an incorrect purchase are at the buyer's expense
2.order will be shipped out in 2-7working days
3.Arrial time:30-60days, or even more.depends on the post service in your country.
If you didn't receive our product within 60 days, hope you can wait a few days more.
4.When you choose: package was send by " China Post Ordinary Small Packet Plus" which is can't track out of China, so hope you could wait for it patiently.thank you!
FAQ:
Q: Can you give me a discount if I need a large quantity of TM050JDHG33 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TM050JDHG33 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of TM050JDHG33 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
