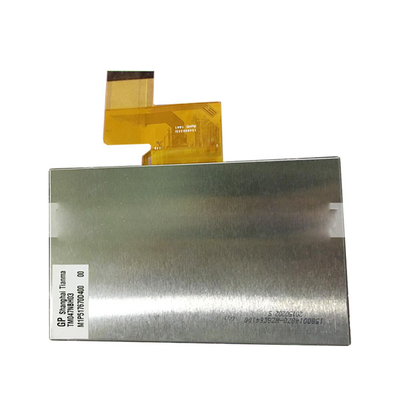

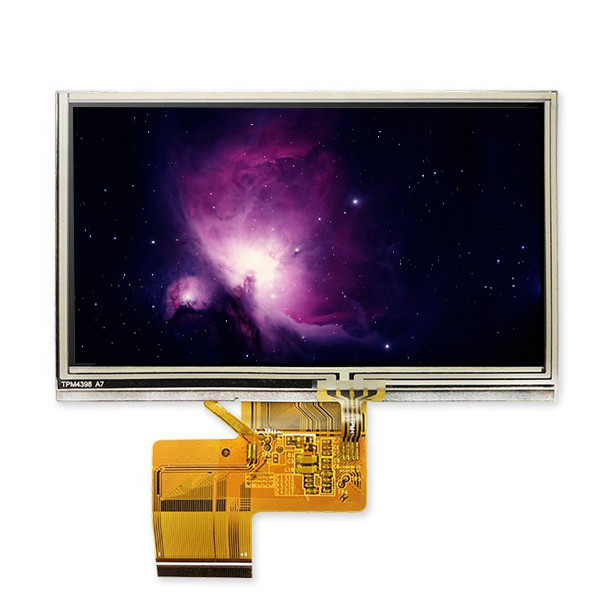

4.7 Inch Industrial LCD Screen Display Panel Navigation Resistive Touch Screen TM047NBH
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM047NBH03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM047NBH03 | Screen Size: | 4.7 Inch |
|---|---|---|---|
| Pixel Number: | 480(RGB)×272 (WQVGA) 117PPI | Active Area(mm): | 103.68 × 58.752 (H×V) |
| Outline(mm): | 114.3 × 72.5 (H×V×D) | Luminance: | 280 Cd/m² (Typ.) |
| Mass: | 76.5g (Typ.) | Designed For: | Industrial / Portable Navigation / MP3 PMP |
| High Light: | Resistive Touch LCD Screen Display Panel,LCD Screen Display Panel TM047NBH,Navigation Tft Lcd Panel Module |
||
Product Description
4.7 Inch 480×272 Industrial Portable Navigation Tft Lcd Resistive Touch Screen Touchscreen Display Panel Module TM047NBH
Product details :
| TIANMA LCD SCREEN TM047NBH03 | |
| Manufacturer | TIANMA |
| Model Name | TM047NBH03 |
| Screen Size | 4.7 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 480(RGB)×272 (WQVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 103.68 × 58.752 (H×V) |
| Outline(mm) | 114.3 × 72.5 (H×V×D) |
| Treatment | Clear, Hard coating (3H) |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Backlight | 5S2P WLED ,20K hours , No Driver |
| Mass | 76.5g (Typ.) |
| Used for | Industrial / Portable Navigation / MP3 PMP |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| 4.7 Inch 480×272 Industrial Portable Navigation Tft Lcd Resistive Touch Screen Touchscreen Display Panel Module TM047NBH03 | |
